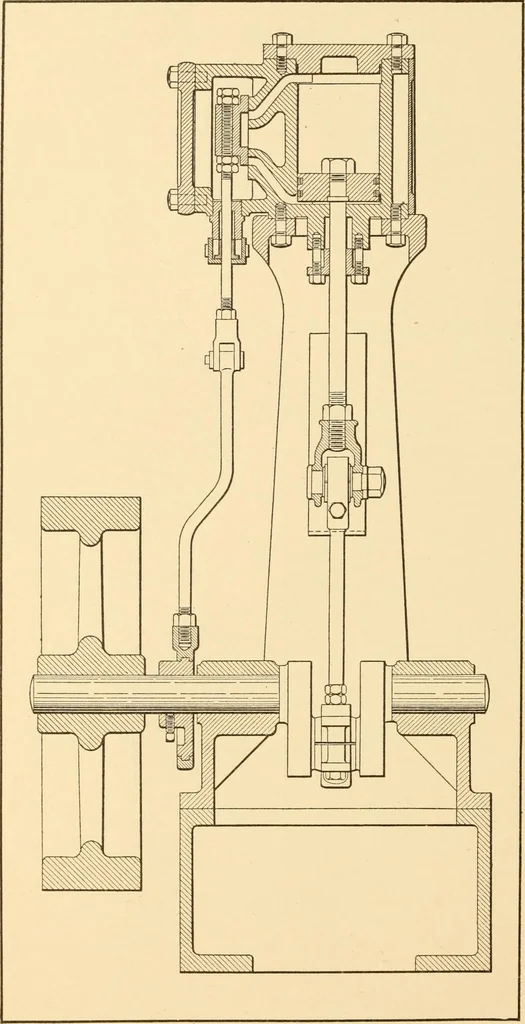

lO o t^ ^^ ^ ^^ COO Fig. 304. Probs. 145, 146 and 147 182 MACHINE DRAWING 5x6 VERTICAL ENGINE … 202. The problemsrelating to Figures 305to 322 comprise a setof drawings for a 5 x6 vertical steam en-gine. They may beworked as separateproblems or as a classproblem. Each prob-lem is stated by itselfso they may be used inany way desired bythe instructor. Insome cases one figurerefers to another…
