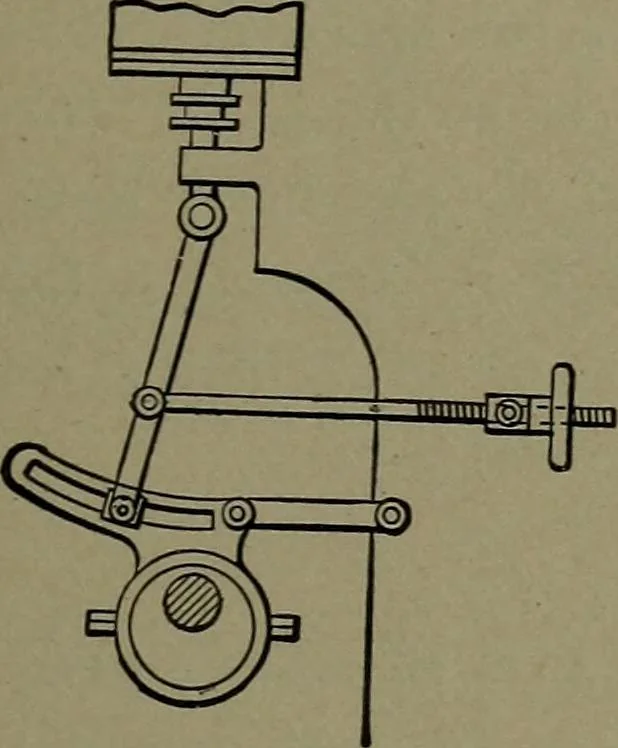

263. VARIABLE EXPANSION GEAR,with one eccentric. The movement of thefulcrmn of the eccentric bar lever by thescrew changes the throw of the valve. … 264. SINGLE ECCENTRIC VARIABLEVALVE THROW.~«Fink link gear for aD valve. The link block is moved in thecurved slot of the link for variation of valvethrow, adjustable by the hand-wheel.
