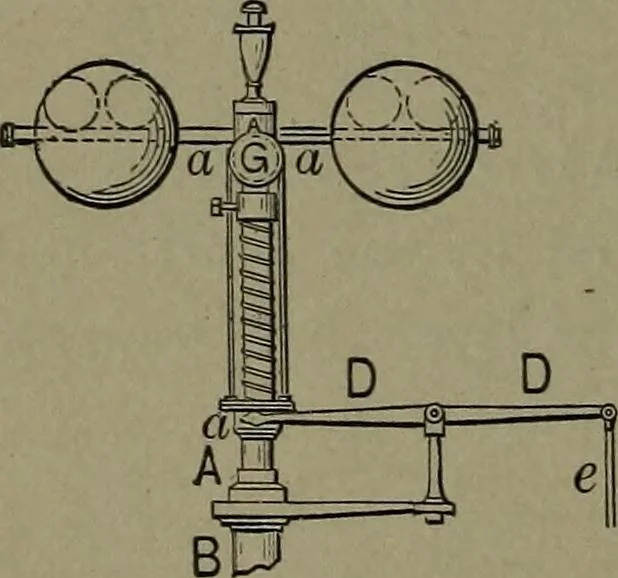

299. INVERTED GOVERNOR.—The cen-trifugal force of the balls is resisted by a springaround the spindle. The extension of the ballslifts the lever spool through the toggle-jointmovement. … 300. DIRECT-ACTING CENTRIFUGALGOVERNOR.—The balls traverse the radialarms «, a, on friction rollers and are restrainedby steel ribbons that pass over a pair of pul-leys at G, and are attached to the spring andgrooved collar that operates the lever andthrottle valve.
