Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 91

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 91

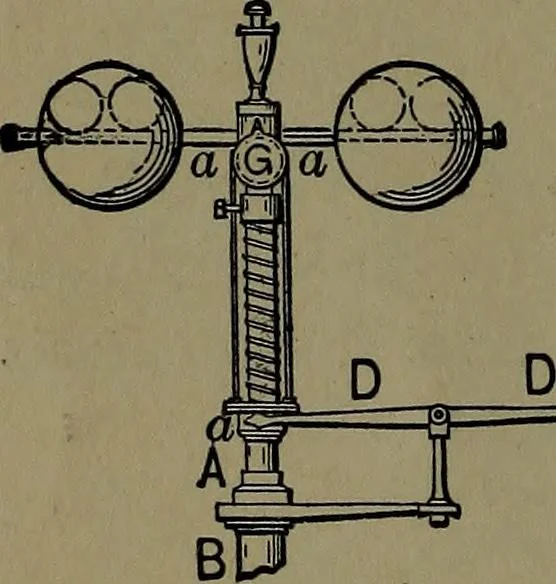

299. INVERTED GOVERNOR.~The cen-trifugal force of the balls is resisted by a springaround the spindle. The extension of the ballslifts the lever spool through the toggle-jointmovement. … 300. DIRECT-ACTING CENTRIFUGALGOVERNOR.—The balls traverse the radialarms a, a, on friction rollers and are restrainedby steel ribbons that pass over a pair of pul-leys at G, and are attached to the spring and ] g grooved collar that operates the lever and ^ throttle valve.
