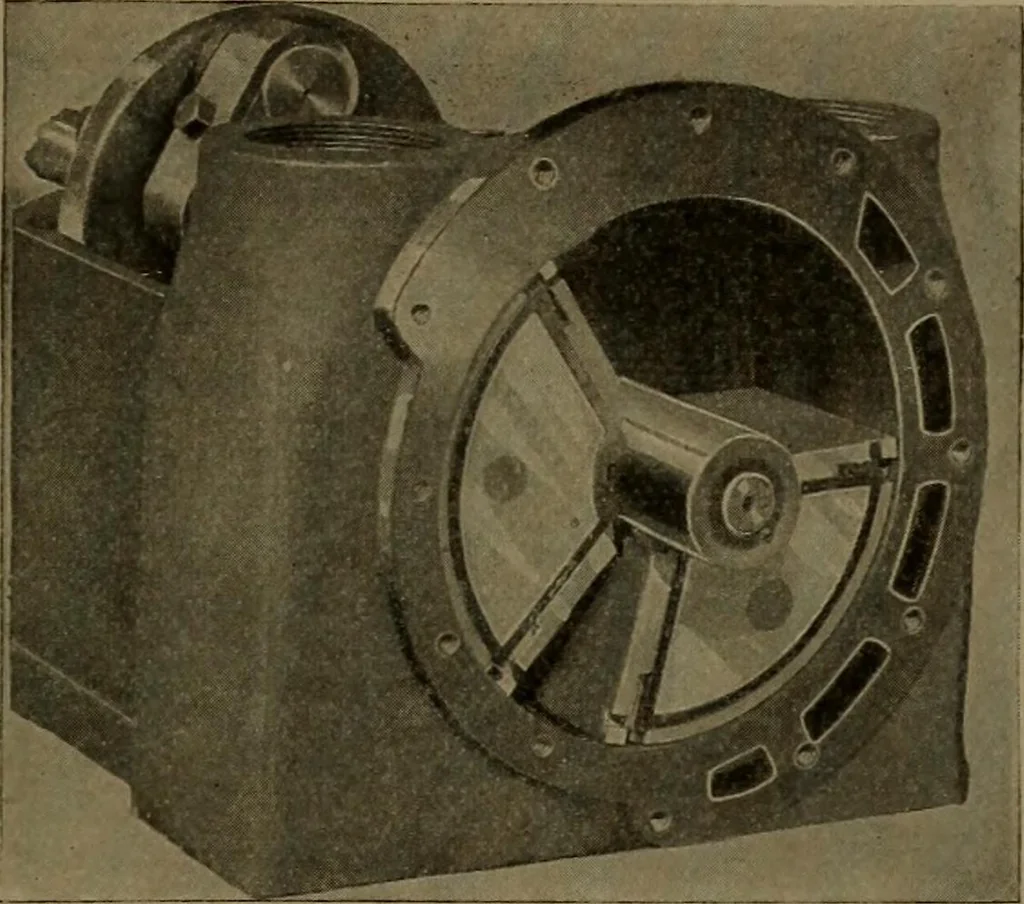

355. OSCILLATING PISTON ENGINE. —Acrank and connecting rod outside the engine convertthe oscillating motion of the piston into rotary motion. STEAM POWER. 97 … 356. VIBRATINGPISTON ENGINE, Par-sons model. Two sectorpistons vibrating in a cyl-inder. One sector is faston a central solid shaft,the other is fast on a con-centric hollow shaft. Atthe other end of each shaftis a crank and link con-nection to a wrist pin atopposite positions on aface plate which…
