Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils (1920)

Stoller, Hugh Montgomery, Austin, F. E. (Frank Eugene), 1873-, Seeger, Edwin Wilbur, 1892- joint author, American Technical Society · Chicago, American Technical Society · leaf 311

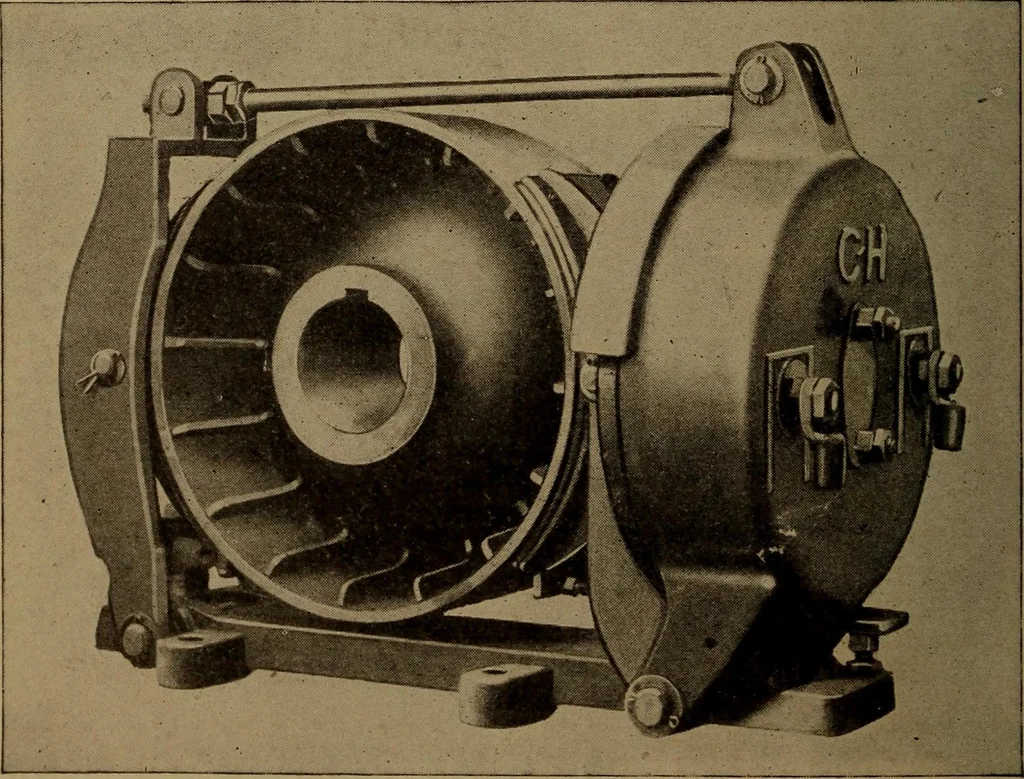

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 311 — Fig. 37. Magnetic BrakeCourtesy of The Cutler-Hammer Manufacturing Company, Milwaukee, Wisconsin 298 ELECTROMAGNETS AND COILS 59 point is reached where the upper, or closing, coil overcomes thepull of the lockout coil, and the switch closes. The current atwhich the switch operates can be adjusted…
