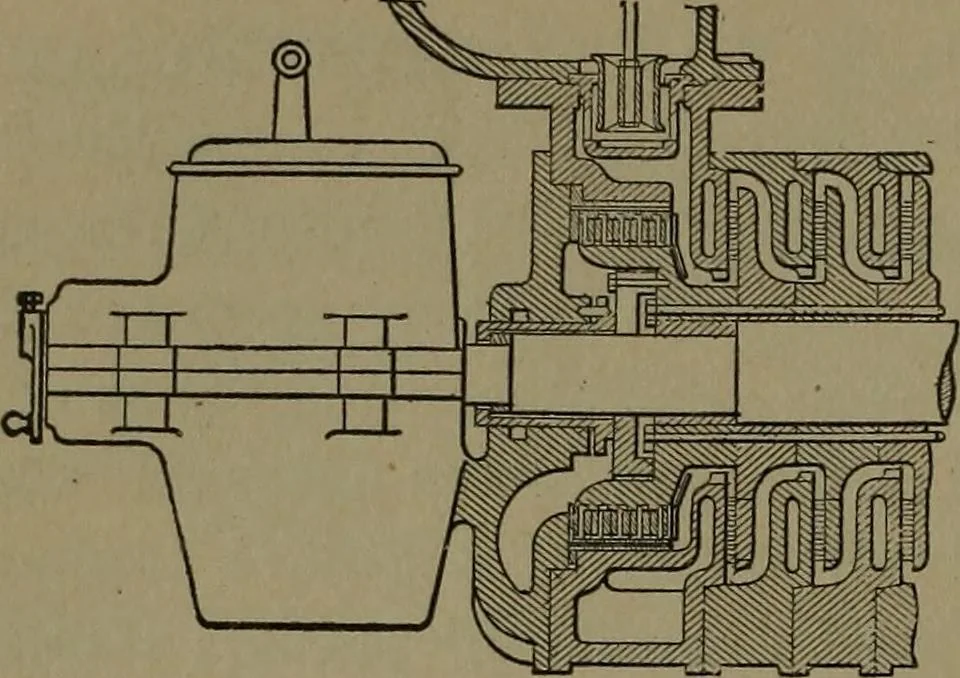

369. DE LAVAL STEAM TURBINE.— A jet or jets of steam impinge at a smallangle upon the concave buckets at the per-iphery of a disc wheel, pass through thecavities between the buckets and exhaust atthe other side. The buckets are lunette.The nozzle has an expanding orifice. 370. Plan showing nozzle… … 371. PARSONS STEAMTURBINE. —A series of discsfixed on a shaft with intersectingdiscs on the shell. The face of theshaft discs has several small bladesset at an angle with the radius.The outside fixed disks have a sim-ilar set of blades interlocking withthe revolving blades and set at a contrary…
