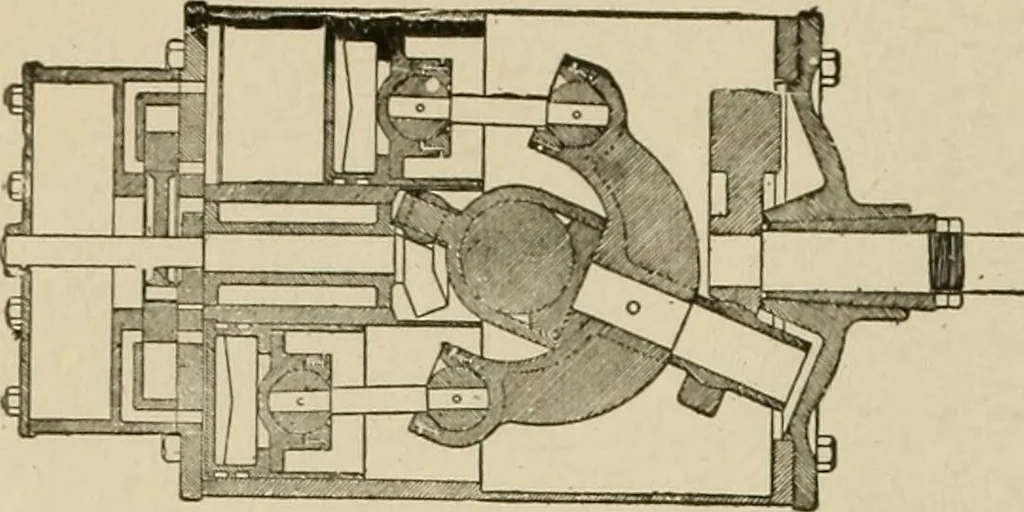

98 STEAM POWER. 360. KNICKERBOCKERFOUR-PISTON ROTARYENGINE.—A four-armedT yoke is socketed on a centrecommon to the four pistons.Its spindle is a crank pin,and makes a conical circuitwith the crank and shaft. The ends of the yoke are socketed to thepistons hy connecting rods. The pistons take steam…
