Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 119

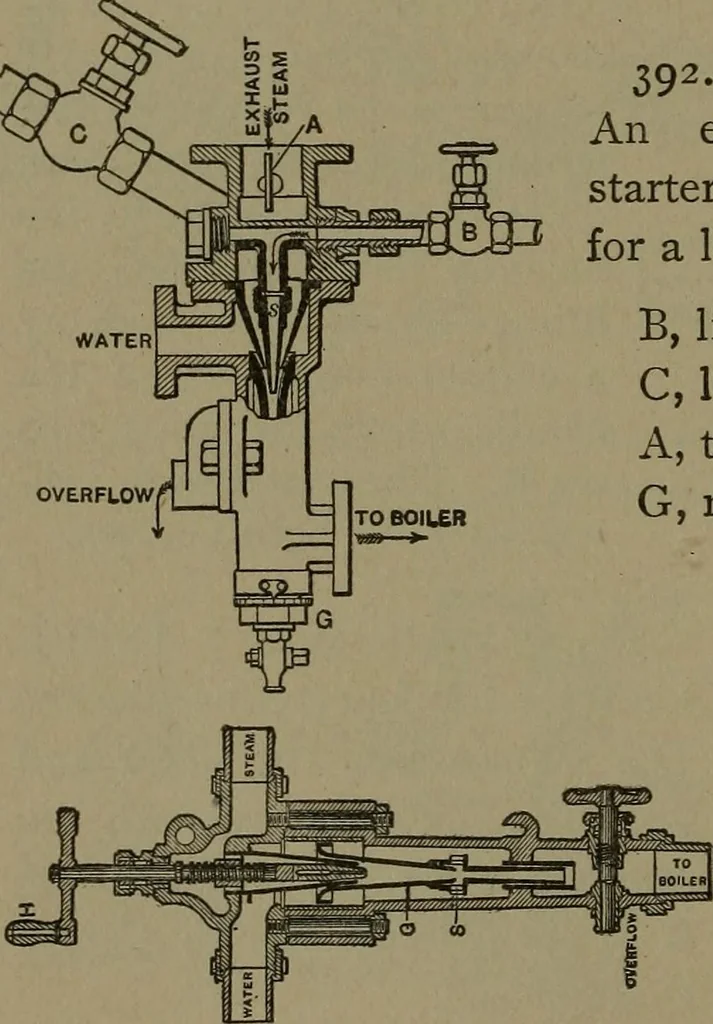

he forcingnozzle andtube. C, the lift overflow. D, the force overflow. Two movements of the handle are required for starting; the firstopens the starting valve a and overflow D, with valve H open. Afurther pull of the handle opens the force valve h^ and the pressurecloses the overflow valve D. 392.… … 393- SELLERS SELF- ADJUSTING INJECTOR.— j^ The water nozzle G has a free movement in the case and cage at S. With too much Avater for the steam, the nozzle is pushed back and partially closes the water area. Self-adjusting. 394. STEAM PUMP, with ro-tating piston valve and curved tap-pet. An arm on…
Mechanical movements
