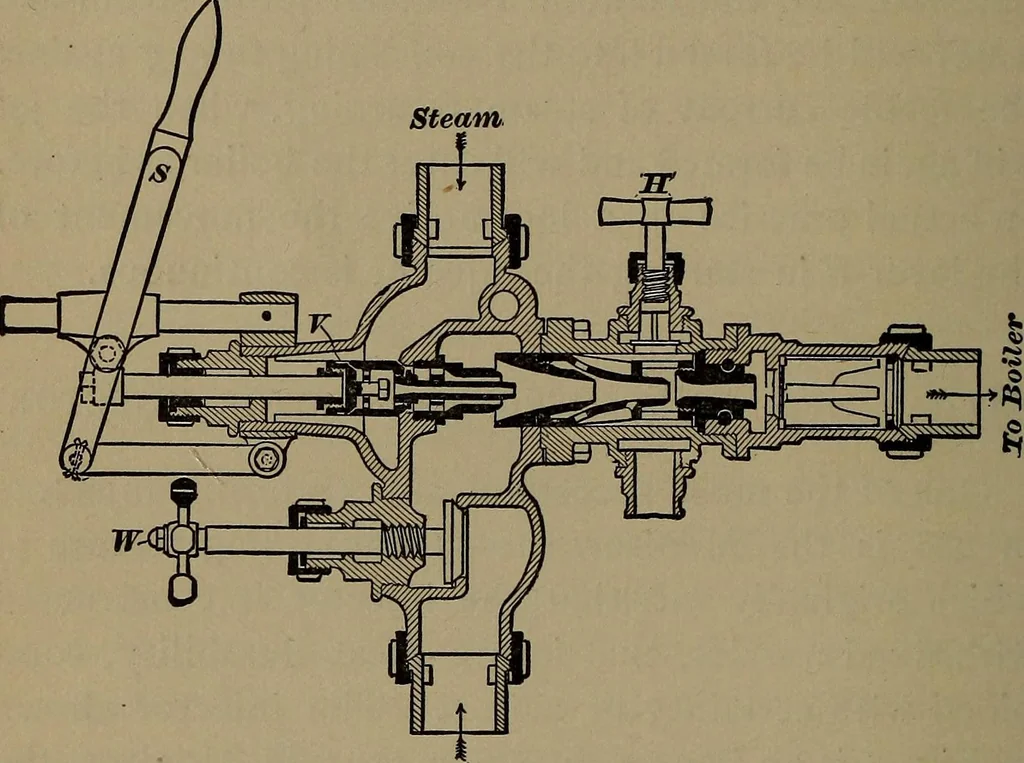

the injector, the water-valve W\s opened. The main lever 5 is then pulledout a short distance to lift the water; when the waterbegins to escape through the overflow the lever 5 issteadily drawn back, which puts the injector working 112 LOCOMOTIVE ENGINE RUNNING. at its maximum power. The quantity… … Fig. 3.—Nathans Monitor. With a boiler pressure of 30 pounds this injectorwill lift the water 5 feet2 and at ordinary workingpressure the steam will have power to lift the water toa height not likely to arise in locomotive practice. LITTLE GIANT INJECTOR. This injector, made by the Rue…
