Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 125

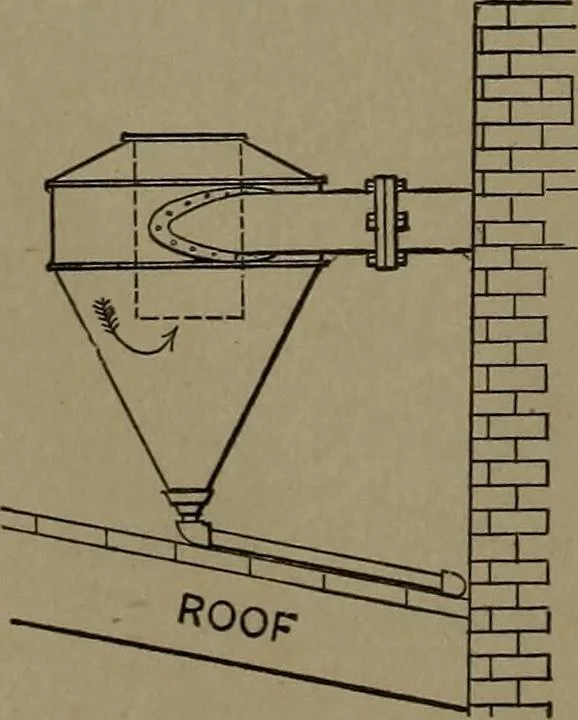

420. EXHAUST STEAM HEAD. — The ex-haust steam is deflected by perforated discs and capplates, which separate the water to drip betweenthe inner and outer shell. … 421. CENTRIFUGAL EXHAUST HEAD. —The exhaust steam head enters the drumtangentially, throwing the particles of wateragainst the outer surface to drip to the bottom. STEAM APPLIAXCES, 115
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
