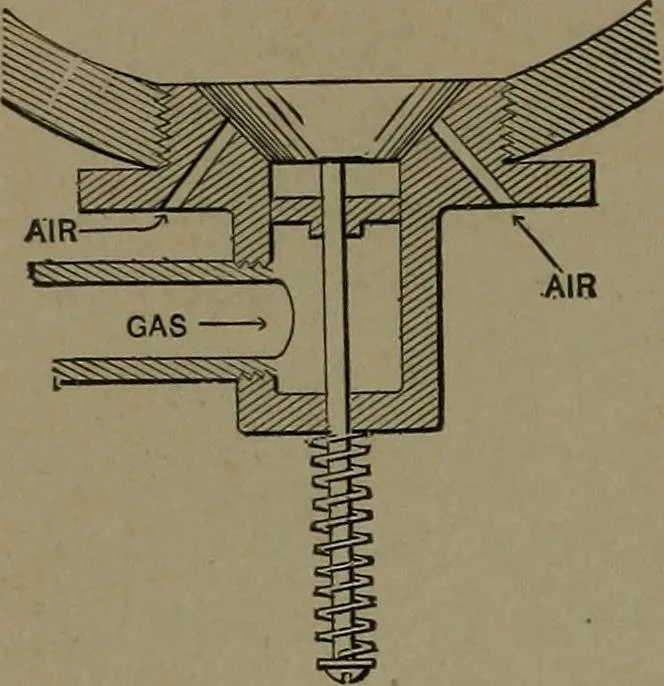

ing the movement of the inlet valve, whichis connected to another arm of the rock shaft. 124 MOTIVE POWER. … 444. INLET VALVE for gas engine.A valve disc slightly held in contact withthe seat by the spring. Air holes should bedrilled close together around the valve seat,so that combined air area shall be largerthan the area of the gas inlet.
