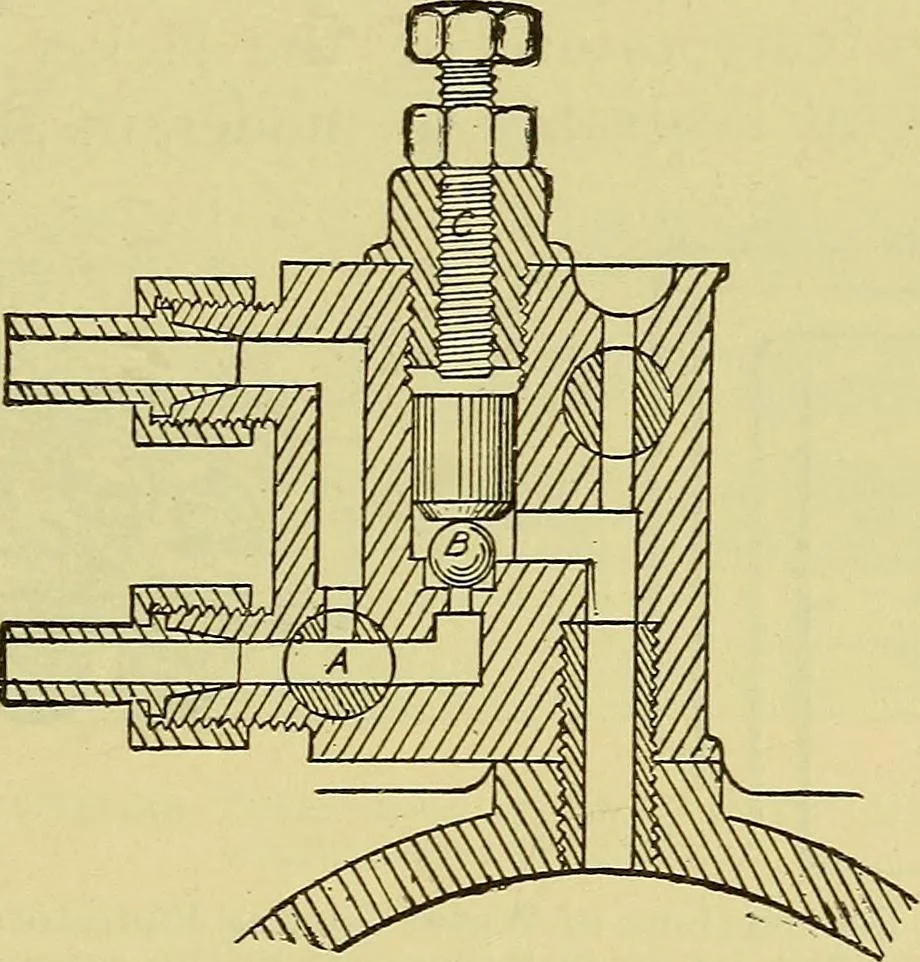

e trunk piston is correspondingly hollowed or concaved. Thespheroidal clearance, formed when they are in contact or prox-imity, is, of course, deformed as the piston makes its out-stroke,but the end of economizing a considerable percentage of heatunits is conserved by thus providing a large… … Fig. 145.—The Lombard Improved Cylinder Cooling- Device. Instead of wing flanges,or jacket water, this system provides for cooling the cylinder by injection of a smallquantity of water, atomized by suction of the piston. This water comes through thelower tube to the left of the cylinder head,…
