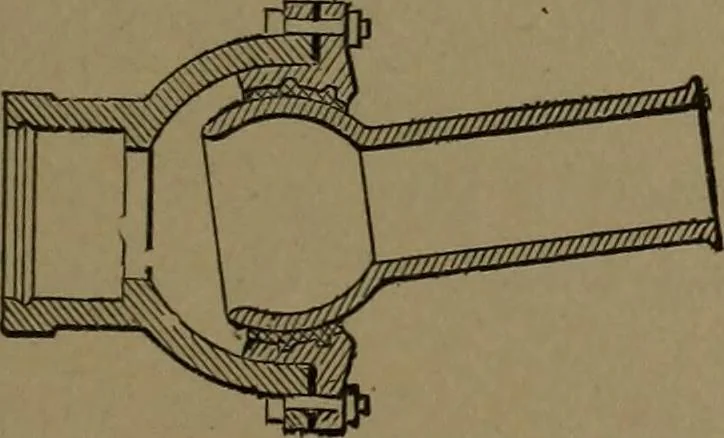

Flanges 585. FLEXIBLE BALL JOINT. are cast upon the spherical ends of the pipes.The joint is packed with a lead ring and dra^vntogether with bolts at any angle within its limit. … 586. FLEXIBLE PIPE JOINTS, forsubmarine pipe lines. The head joint isfirst made up in the gland. The flangejoint is bolted when the pipe is laid in lineready for lowering.
Mechanical movements
