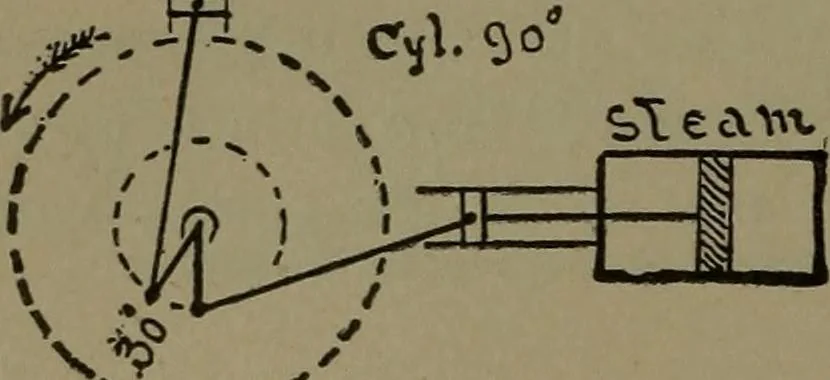

An illustration from Mechanical movements, powers and devices, 1907, leaf 187 — 176 AIR POWER APPLIANCES. ^s?^?^ … ^w^^^ 655. CRANK EQUALIZING AN-GLE in air compression. The cylin-ders are set at an angle of 90° and t\vGcranks are set at 30° . Burleigh,*early Ingersoll, and De Lavergnesystem.
