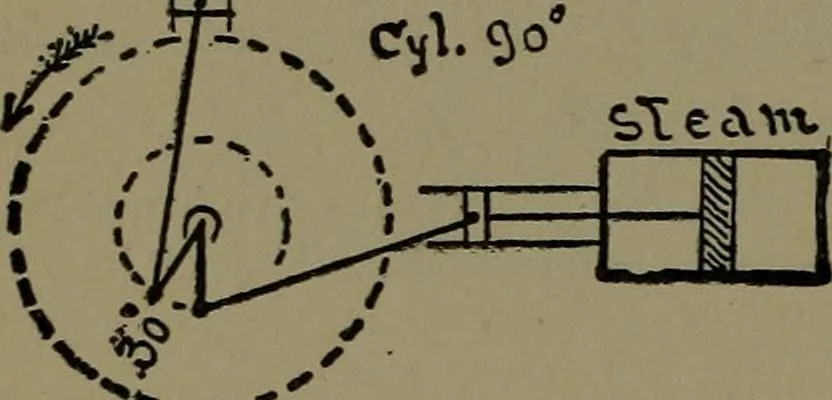

/C^A«^<^° ►•.-»• 176 AIR POWER APPLIANCES. g^teA^v^v, … 655. CRANK EQUALIZING AN-GLE in air compression. The cylin-ders are set at an angle of 90° and twocranks are set at 30° . Burleigh,early IngersoU, and De Lavergne*system.
