Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 205

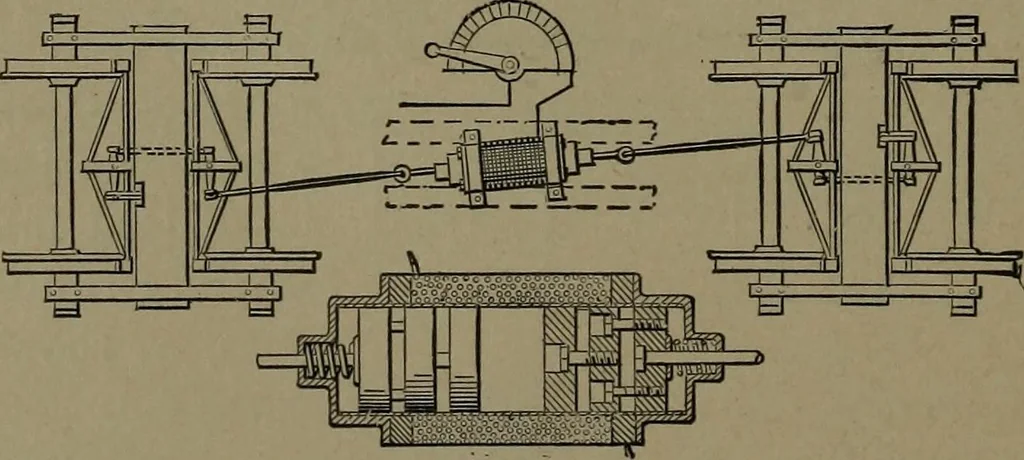

728. ELECTRIC STREET-CAR BRAKE.—A solenoid, oper-ated by the trolley current, pulls up the brake levers. The springs ^ around the pistonrods hold back theconnections, actingas buffers. The pis-tons are dividedinto three partseach, to soften thejerk when turningon the electric current. 729. Section… … ELECTRIC POWER AND CONSTRUCTION. 195
Mechanical movements
