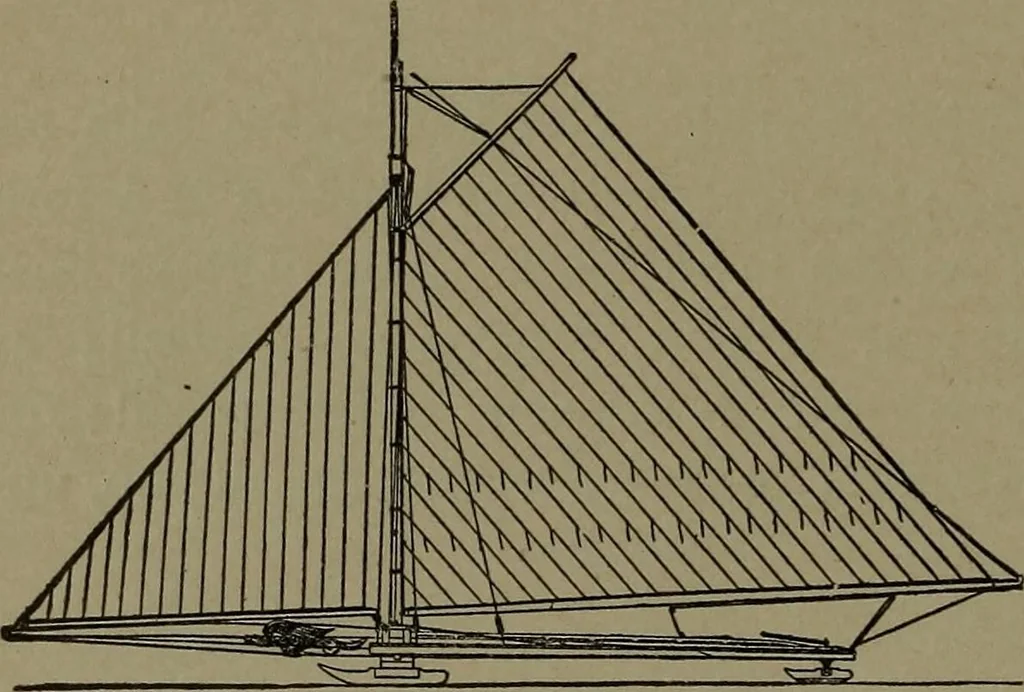

786. FULL-RIGGED SHIP.—Square saUson fore, main, and mizzen mast, with a fore andaft sail on mizzen mast. Three jibs, i, flying- 7\ jib; 2, jib; 3, f ore topmast-stay sail; 4, foresail; ^^ 5, mainsail; 6, cross-jacksail; 7, spanker; 9, foretopsail; 10, main topsail; 11, mizzentopsail; 22,… … 787. ICE BOAT.—Asloop-rigged frame on threerunners, the rear one be-ing the tiller runner. f, ROPE KNOTS AND HITCHES. 788. CLOVE HITCH.Mechanical movements
