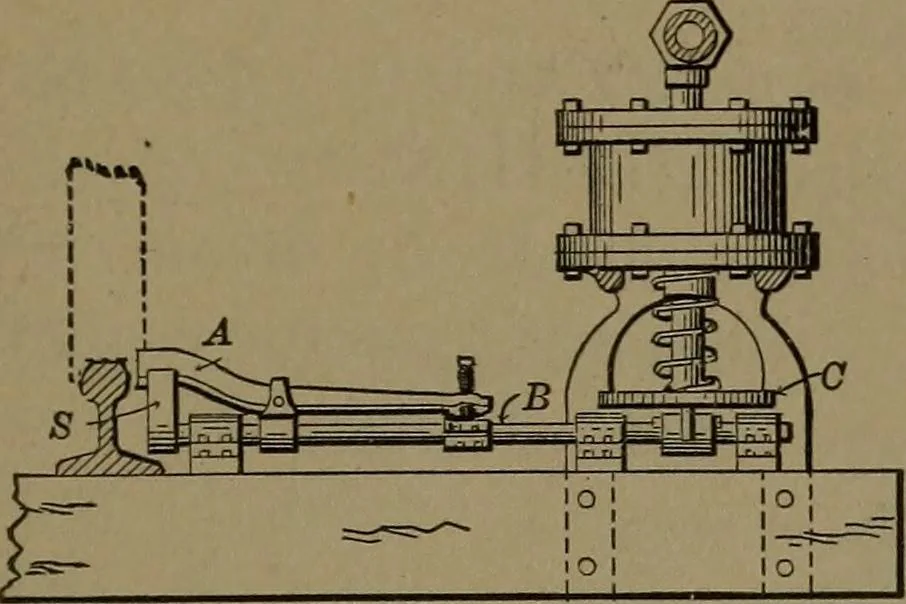

SSoc. RAILROAD CROSSING GATE.—A lever in the gatehouse operates the gate arms by a series of bell cranks linked to-gether and to sectors in the gate arm boxes. A small lever andsector at each arm to close the foot walk. NAVIGATION AND ROADS. 227 … SSod. RAILWAY PNEU-MATIC SIGNAL.—An aircylinder near the rail is operat-ed by the wheels passing overthe lever A, pressing it againstthe cam S, on a rocking shaftB, lifting the plate C, and theconnected piston. Elevationand plan. 88o(?. A SELF REGIS-TERING TIDE GAUGE.—S is the float in the tide…
