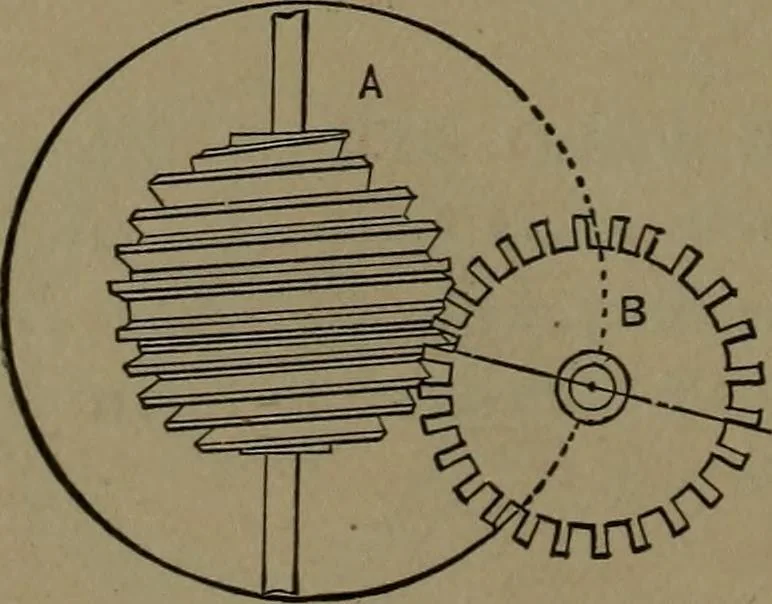

913. TRAVERSING MOTION from cir-cular motion of a worm gear. The wormwheel and spur gear are relatively held by theframe ^, and slide freely on shaft a and guidebar D. The feathered key on shaft a allows the worm to turn withthe shaft, while the connecting rod ^, by having one end fixed to theframe… … 914. GLOBOID SPIRAL GEARWHEELS.—The revolution of the glo-boid gear A gives a variety of differen-tial motions to the spur gear B as itswings between the limits practicablewith the globoid teeth. GEARING. 235
