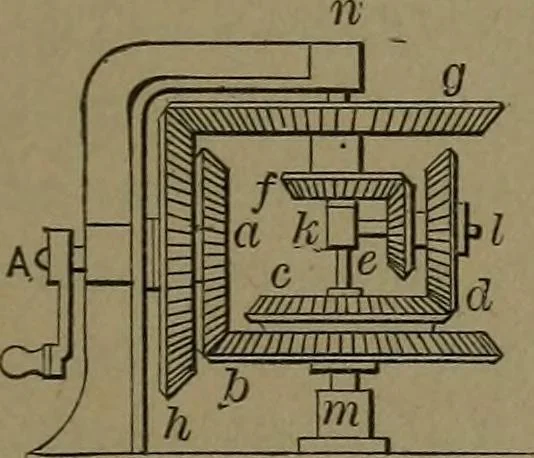

but illustrating thechanged conditions of gear motion. Gears a andh are fixed to the crank shaft. _ Gears g and Jare fixed to a hollow shaft turning on the shaftn m. Gears e, b are fixed on a hollow shaft andturn on shaft n 7?i. The arm >^ / is fast on andsupported by shaft 7z m. Gears e, d are…
