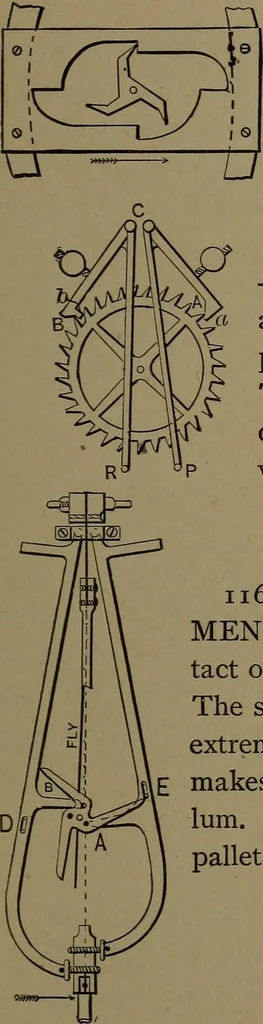

HOROLOGICAL. 287 … 1165. THREE-TOOTHED ESCAP&MENT for a pendulum. The pallets are madein a plate attached to a pendulum. The es-capement makes one rotation to every threebeats of the pendulum. 1166. MUDGE GRAVITY ESCAPEMENT. —The pallets A, B are on separate arbors, witharms extending down to the pendulum…
Mechanical movements
