Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 347

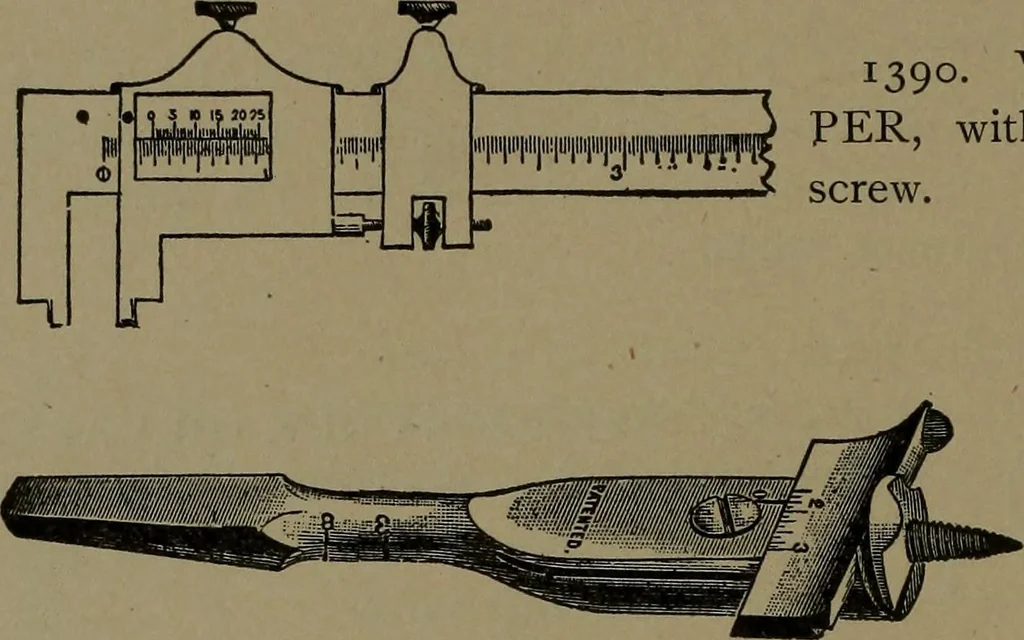

verses around the shaft to be centered.1389. End view. 1388. CENTERINGTOOL. Used for scratch-ing the centre on roundshafting, or rods. Theslotted arm E swings onthe spindle A, as it tra- 336 MILL AND FACTORY APPLIANCES. … 1390. VERNIER CALI-PER, with slow-motion stopscrew. 1391. EXPAN-SION BIT.—Thespring clip held bya screw clamps thecutter in position to bore any size hole within its limits of expansion.
Mechanical movements
