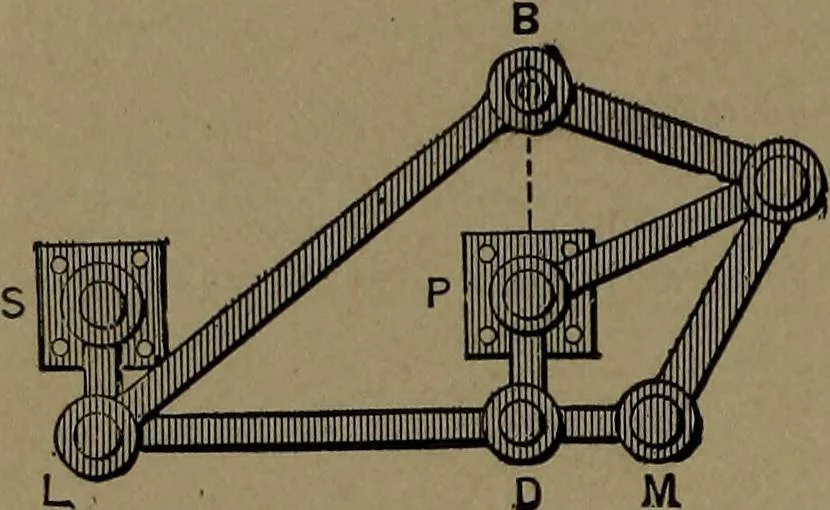

ough a single move-ment of the finger lever, three differentmovements are made, including the rais-ing of the index number. 48^-. LEVER ACTION in a typewrit-ing machine. A main lever with fingerstud operates the type lever through abell crank and links. 48/z. LEADER ACTION in a typewrit-ing… … lengths, as are the short links, S, L and P, D. 4Si, STRAIGHT LINE LINK-AGE.—With the joints S and P[^ fixed the joint B will have a ver-trical motion while the link L, Mwill have a horizontal motion paral-lel with the fixed points S, P. LinksP, C, C, M, and B, C, are of equallength. L, B and L, M…
