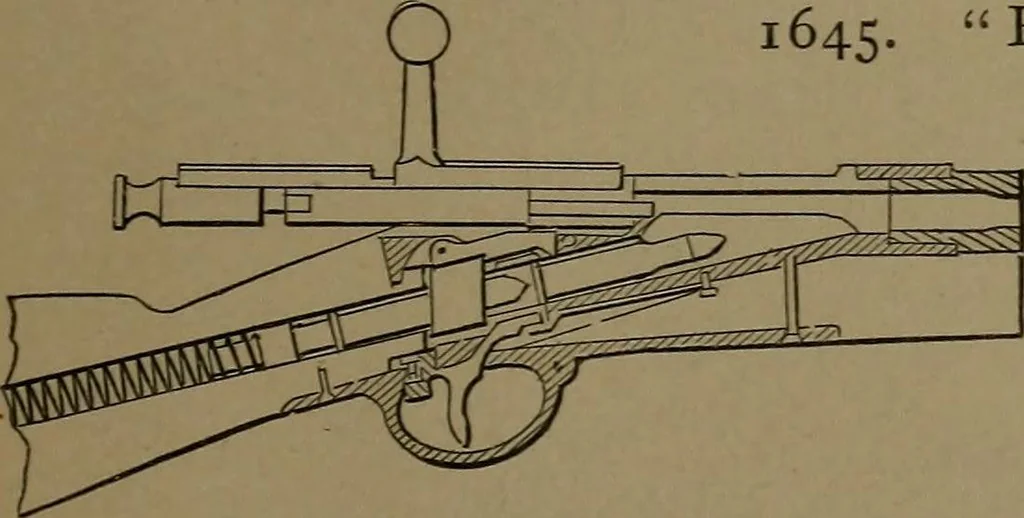

MAGAZINE magazine is REMINGTON GUN. —The placed in the stock under thebarrel. The cartridge is liftedby a pivoted carrier andpushed forward by the breech block. Central spring plunger hammer. … into the barrel. HOTCHKISS MAGAZINE GUN.—The reserve cartridges^^ are carried in the gun stock^^^^ and f onvarded by a light spring.The breech bolt draws back bythe handle, when the cartridgeis raised and pushed forwardCentre pin spring hammer. LEBEL RIFLE.— Magazine under thebarrel in the…
