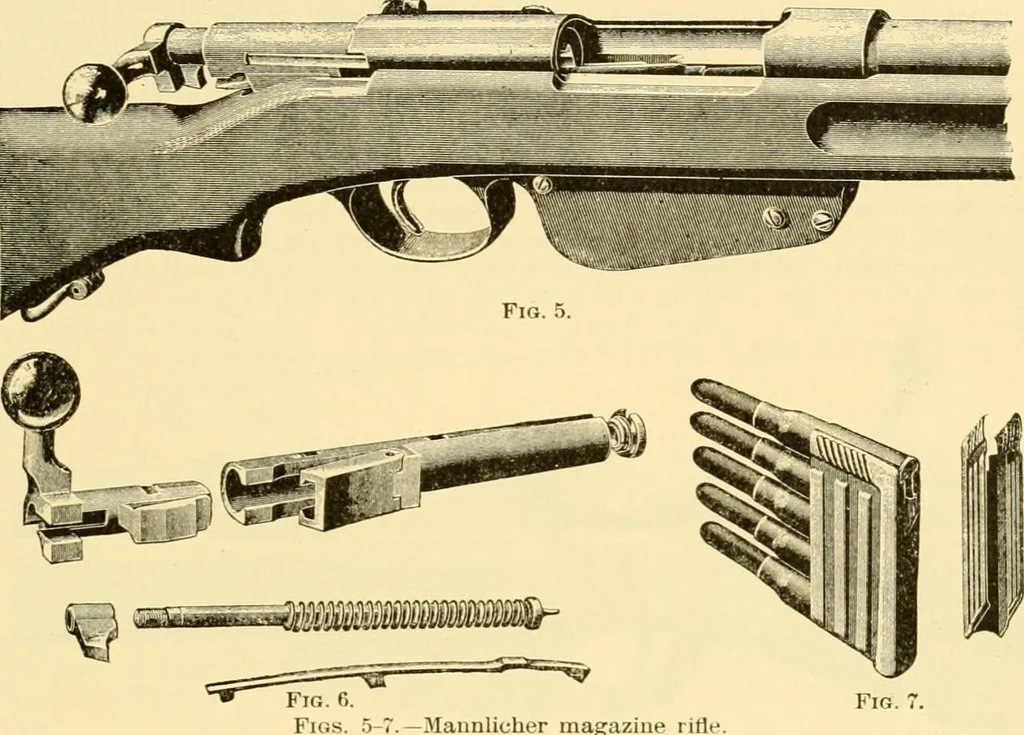

op-catch over the projection, when the bolt can bereadily withdrawn, bringing the empty cartridge-case with it. The magazine is not intendedto be removed, and is fitted with a spring, the platform of which always remains parallel tothe cartridges, and directs their points to enter the chamber. Fig.… … Jlaunlicher magazine ritte. beyond which the extractor projects, catches the base of the cartridge standing in theclip or cartridge-holder (Fig. 7). Before the cartridge is free from the clip the bullet isentirely within the chamber, and forms a guide to lead it forward. When the clip ceases tohold…
