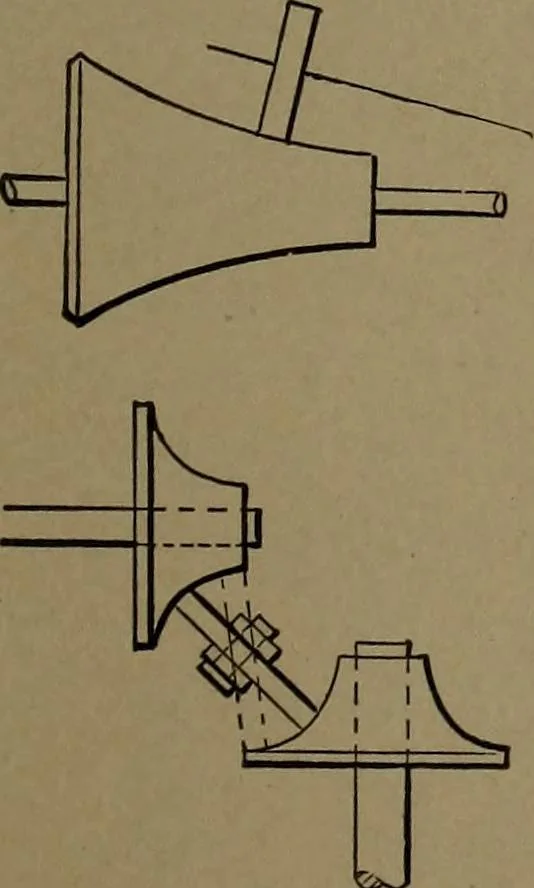

An illustration from Mechanical movements, powers and devices, 1907, leaf 48 — g on a revolving barrelor long cylinder. A, forward motion; B, stop.The principle of the Judson railway pro-pulsion. Efficiency was increased by the use of a small truck withseveral roller pulleys. 103. VARIABLE ROTARY MOTION froma friction pulley traversing a concave conicaldrum. The speed ratio… … 38 TRANSMISSION OF POWER.
