Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 71

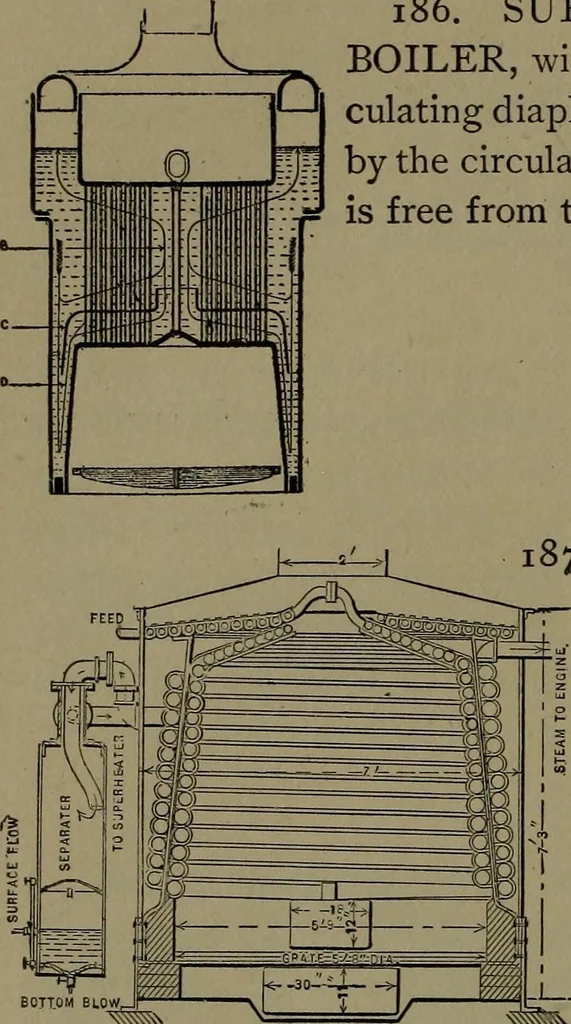

horse-power. 183. DION VEHICLE BOILER.—A central water and steam drum enclosed withinan annular drum, and connected by short in-clined tubes. A light and quick-firing boilerfor a motor carriage. 184. BABCOCK & WILCOXWATER TUBE BOILER.—Inclinedstraight tubes expanded in vertical steelheaders,… … i86. SUBMERGED HEAD VERTICALBOILER, with enlarged water surface,, and a cir-culating diaphragm by which the fire head is sweptby the circulation of the water. The central spaceis free from tubes to facilitate circulation. ■^#5fN 187. HERRESHOFF BOILER.— A horizontal volute coil at thetop acts as a…
Mechanical movements
