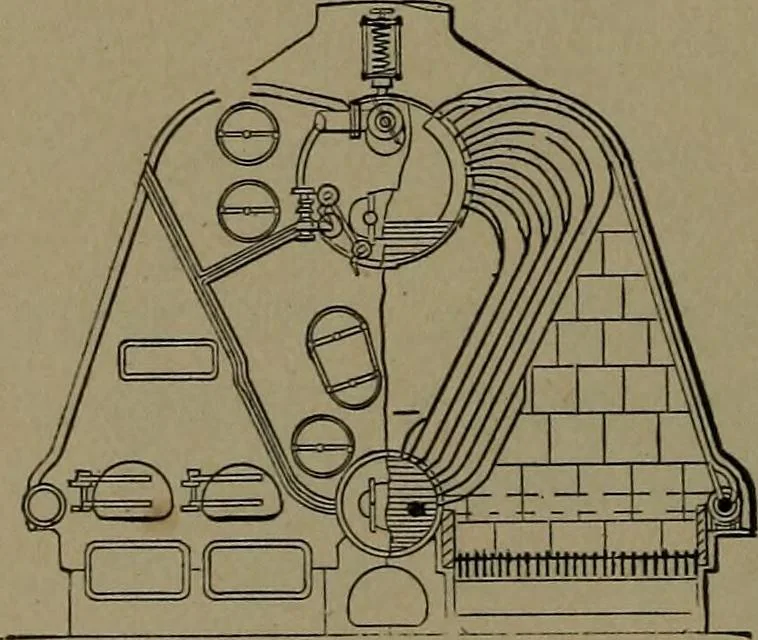

i86. SUBMERGED HEAD VERTICALBOILER, with enlarged water surface,, and a cir-culating diaphragm by which the fire head is sweptby the circulation of the water. The central spaceis free from tubes to facilitate circulation. ■^#5fN 187. HERRESHOFF BOILER.— A horizontal volute coil at thetop acts as a… … 188. THORNYCROFT BOILER.—A large steel drum above and a waterdrum below, connected with a large num-ber of bent tubes. The water return isthrough a large tube at the rear end ofthe boiler.
