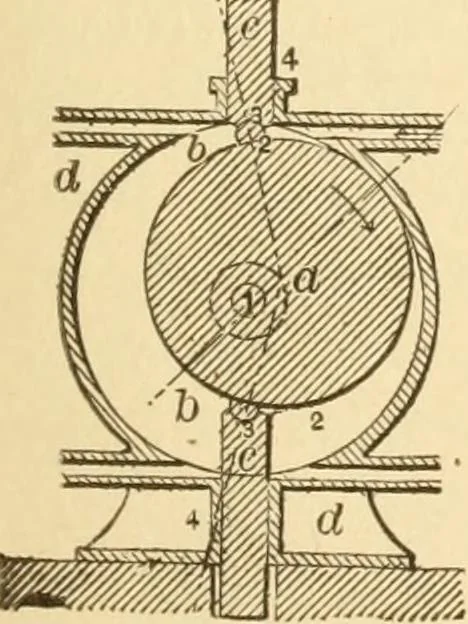

330. ROTARY ENGINE.—B, shaft; C, eccen-trie rotating piston ; D, follower slide. The eccen-tric cylindrical piston operates the slide by itsrevolution. … 331. NAPIER ROTARY ENGINE.—Aneccentric mounted cylinder on a shaft concentricwith the shell. There are two sliding wings in slotsin the shell, held to their bearings by springs or camwheels on the shaft outside with connecting ban.There are two pair of ports. 92 STEAM POWER.
