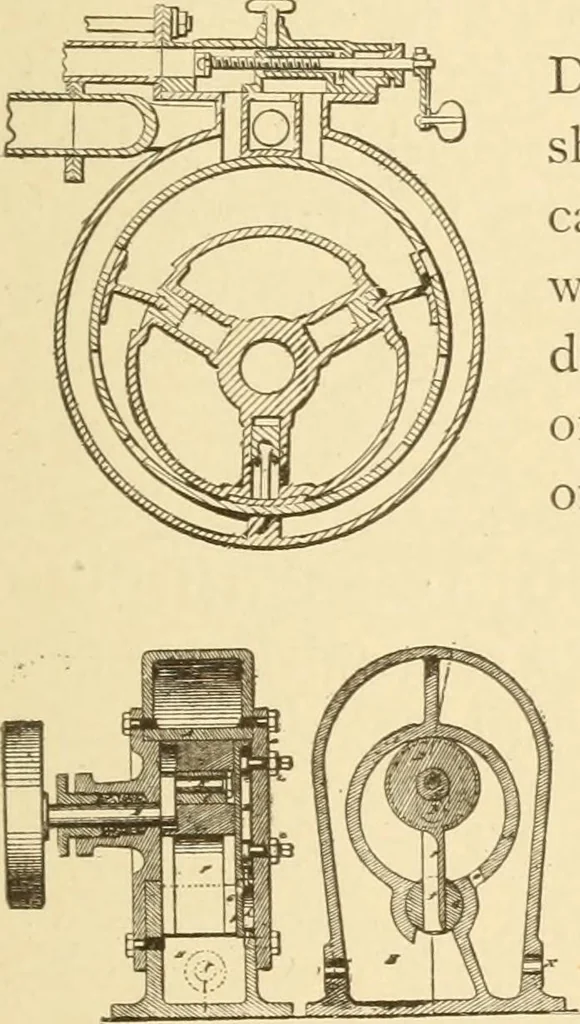

portson inner shell at the left side. Exhaust portson the inner shell at the right. 339. BARTRUM & POWELL RO-TARY ENGINE.—A double shell dividedfor steam and exhaust. The inner shellcylindrical with a shaft and crank concen-tric. The crank pin carries a smallerwinged cylinder, the wing sliding…
