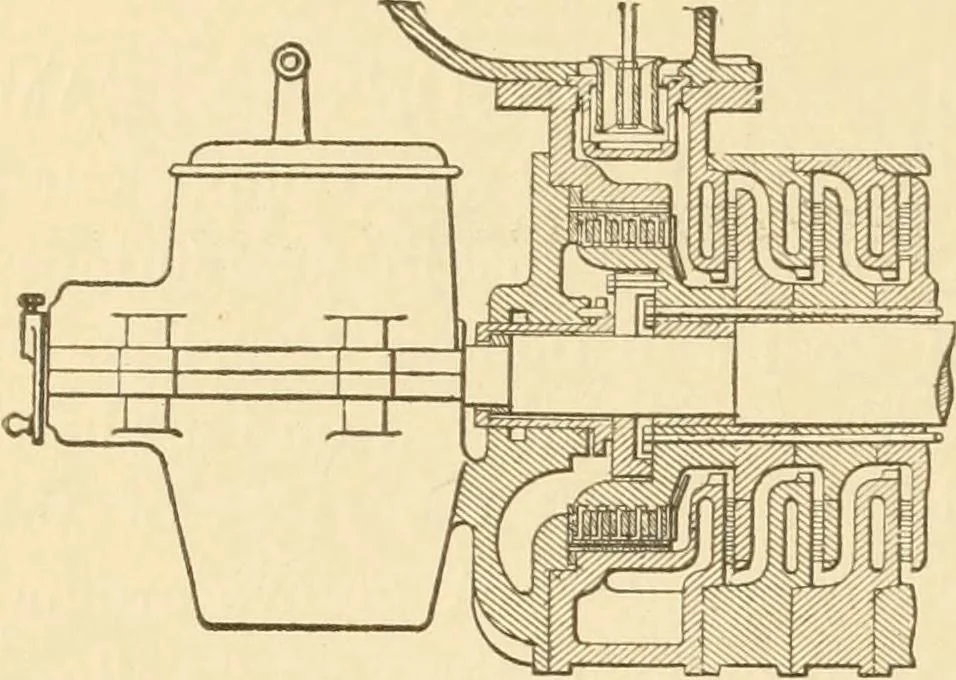

g nozzle at side ofwheel. lOO STEAM POWER. 371. PARSONS STEAMTURBINE. —A series of discsfixed on a shaft with intersectingdiscs on the shell. The face of theshaft discs has several small bladesset at an angle with the radius.The outside fixed disks have a sim-ilar set of blades interlocking withthe… … pair and outward again.
