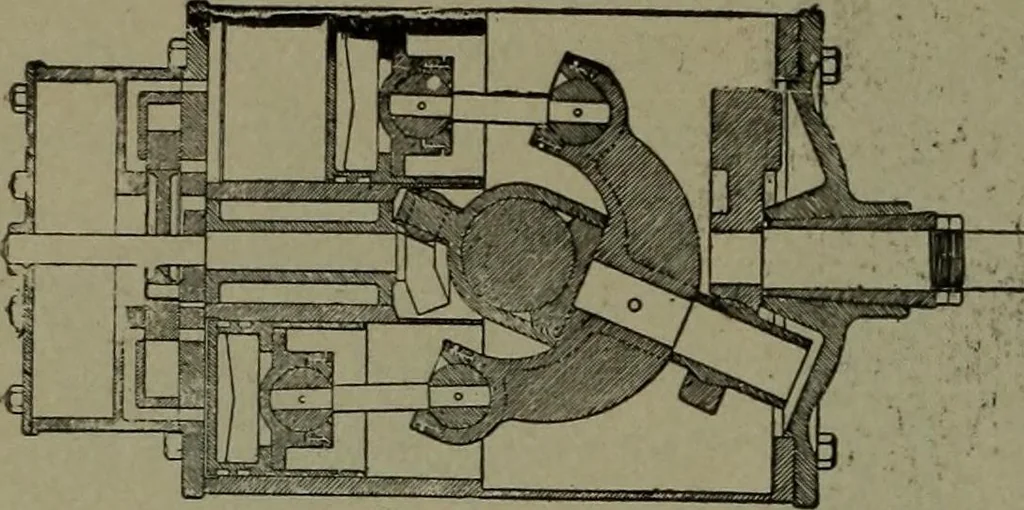

98 STEAM POWER. 360. KNICKERB.OCKERFOUR-PIS^rd%-ROTARY ENGINE.—A- fou^armedlyoke is socketed on ,a centre common to the four pistons. Its spindle is a crank pin, and makes a conipal circuitAvith the crank and shaft. The ends of the yoke.-^re socketed to thepistons by connecting rods. The pistons…
