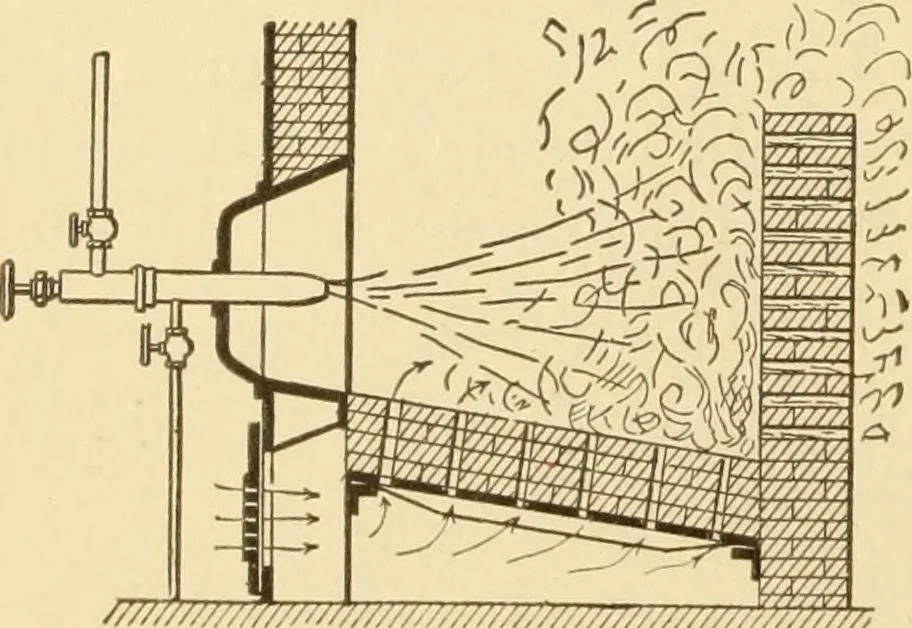

0 (■ -0. 9 -1 C 0 0^ feN … wm/m^///7W///////77///////M//////}// 371a. CRUDE PETROLEUMBURNER with concentric fixed noz-zles. One of many varieties in use.I, oil feed; 2, steam feed; 3, air inlet.Further air regulation is made outsidethe nozzles. 3716. THE HAMMEL CRUDEOIL BURNER. Gives a broad flame. A, oil supply; B, steam…
