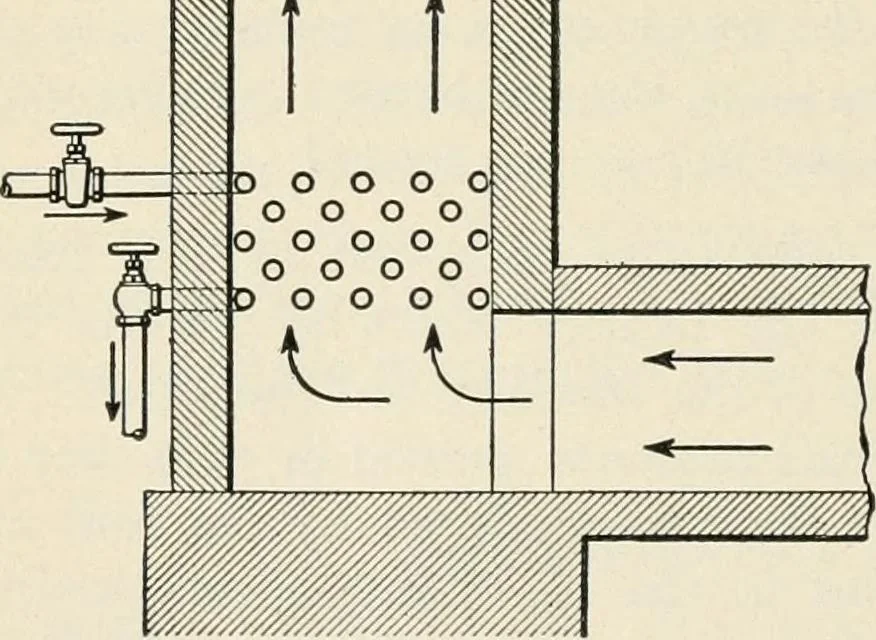

rs; l^-inch pipes should be spaced not less than4 inches apart between centers. If the coils are located in the stack, they should be placedhorizontally, about as shown in Fig. 88, care being taken to insure perfect drainage. It is poor practice toarrange steam coils ver-tically and around thesides… … Fig. 88. greatest available height for the column of warm air, andevery foul-air inlet should enter below, never above them. TITE NATURAL, DRAFT SYSTEM. 376. In this system, the air is permitted to circulatewithout any artificial force. In the better class of dwellings,special flues are provided,…
