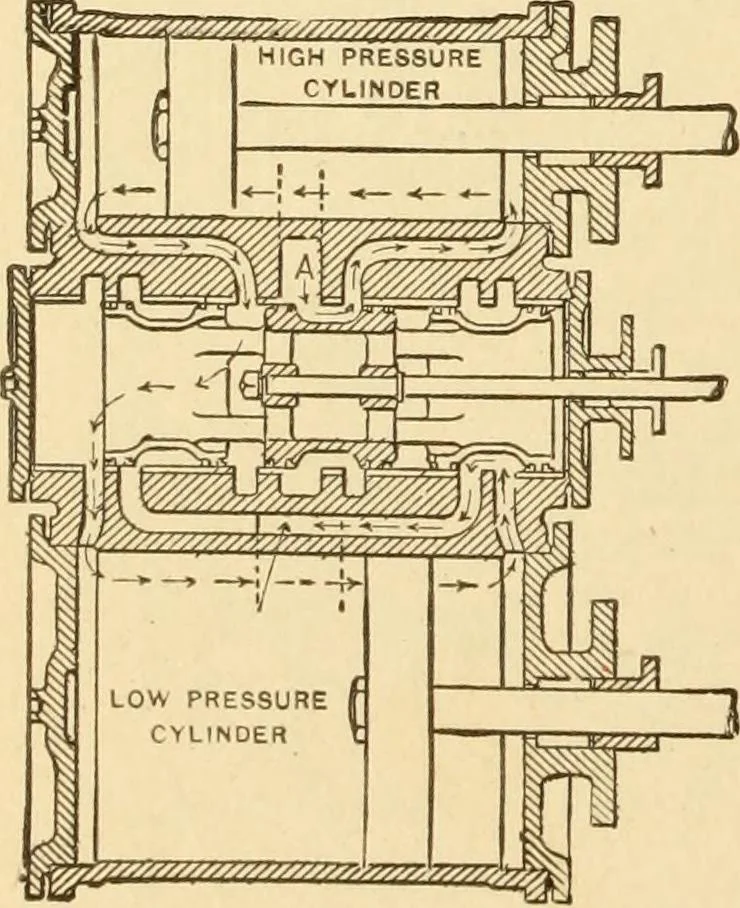

371/z.. THE WORTHING-TON WATER TUBEBOILER.—The water tubesections are between headersand cross each other in series;the lower ends of the diagonalsections are connected with across pipe for circulation fromthe steam drum. Has theAmerican stoker attached. … 3711. VAUCLAINS COM-POUND LOCOMOTIVECYLINDERS.—A single pis-ton valve for both cylinderswith direct steam passagesthrough the valve chamber.High pressure steam entersat the central port A. Steaminlet and exhaust indicated bythe arrows. Section V. STEAM APPLIANCES. Injeciors, Steam Pumps,…
