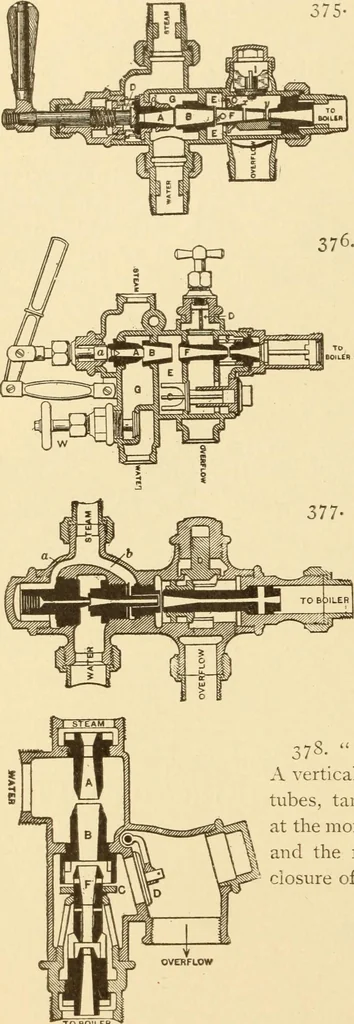

Z7Z SHAEFFER& BUD EN-BERG INJECTOR.—An exhaust in-jector by which the exhaust steamestablishes a feed jet to the boiler. Ahinged section in the combining tubeallows a free flow of steam to draw thewater; the hinged section then closes andthe injector operates the same as othersfor feeding a… … METROPOLITANI^7ECT0R.—The steam isturned on by a screw spindlevalve. It has three fixed noz-zle tubes, A, B, F. A discrelief-check valve, C, and awing check, I. 376. LUNKENHEIMER IN-JECTOR.— Four fixed noz-zle tubes with a lever-movedvalve, a ; W, water-regulatingvalve ; D, stop check to over-flow;…
