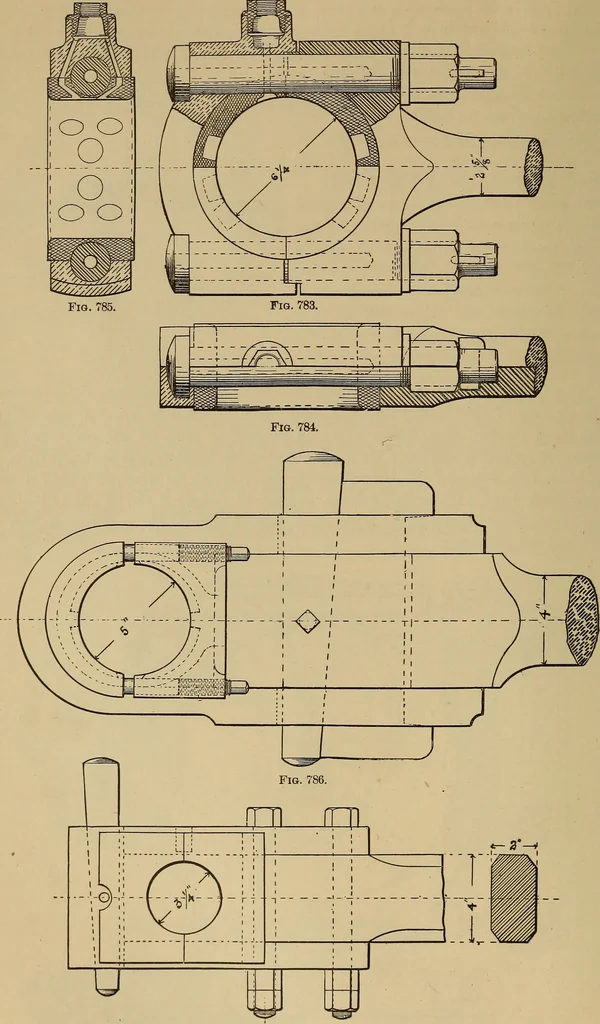

Fig. 783. 350 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. … Fig. 787. MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 351 In many marine engines the boxes of both crank and cross-head pins areconnected with strong and heavy bolts without any other rod. Fig. 786 is a strap-end of a connecting-rod, from the Corliss Steam-EngineCompany. The iDccnliarity is the…
