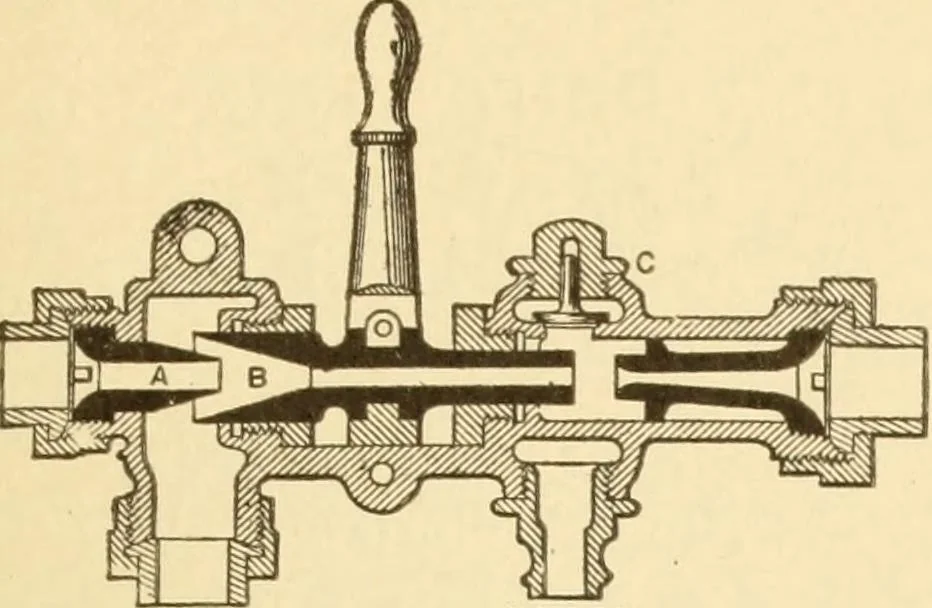

W, water-regulatingvalve ; D, stop check to over-flow; C, automatic check; W,water valve. 377. EBERMAN INJECTOR.— The combining tube slidesfor regulating the lift and over-flow. A single gravity checkvalve, 1), closes the overflowwhen the current to the boileris established. 378. NATHAN INJECTOR.—A… … 379. *LITTLE GIANTINJECTOR.—This modelhas two fixed tubes. Thecentral or combining tube ismovable for adjustment. Asingle automatic check valverejrulates the overflow.
