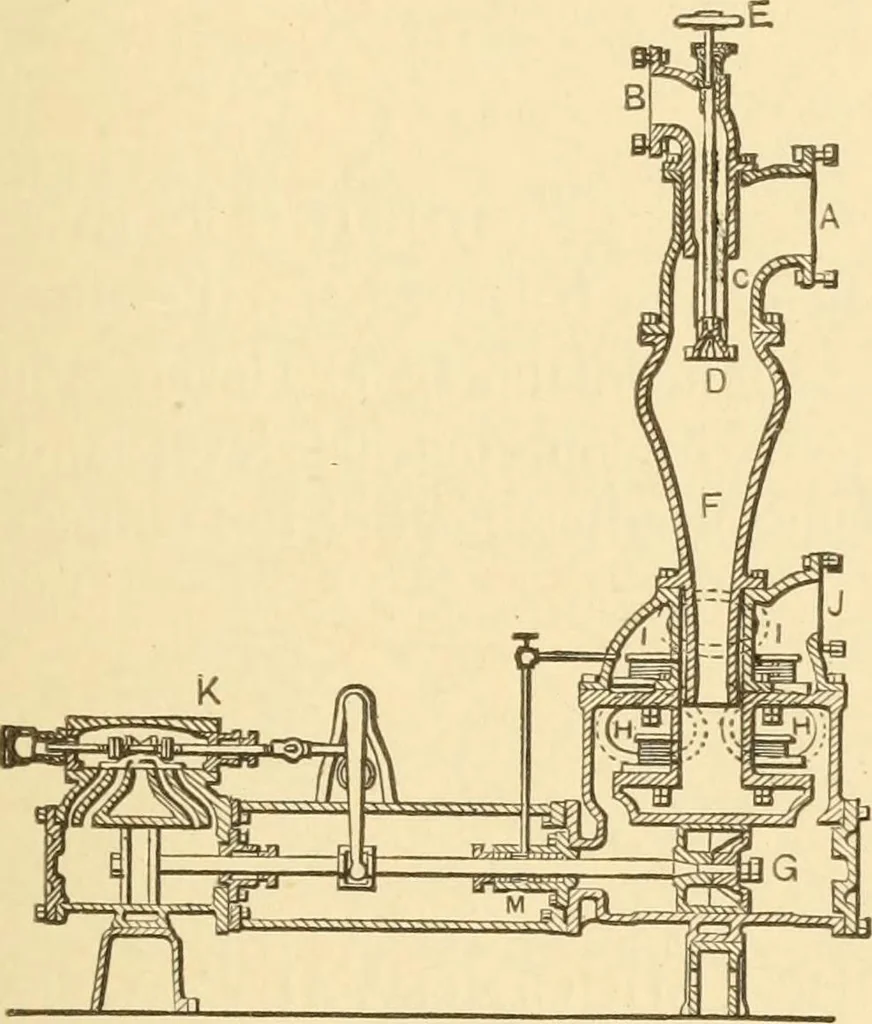

395. MISCHS VALVETAPPET, for a steam pump.A three-armed lever rockedby a roller travelling with thepiston rod. … 396. INDEPENDENT JETCONDENSER PUMP. A, exhaust inlet from engine. B, water inlet. C, water nozzle. D, spray valve regulated byscrew spindle and wheel E. F, spray chamber. J, water discharge from pump.
