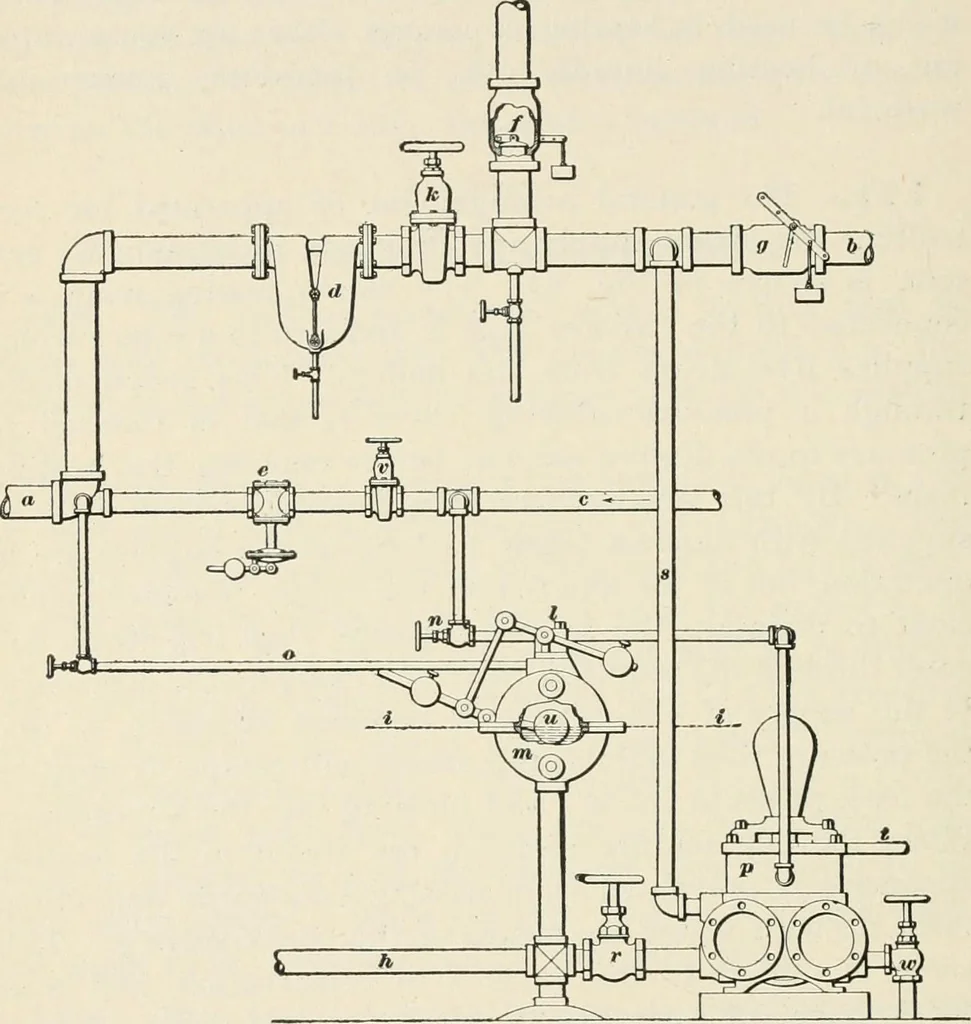

ing the heating system, for the purpose of removingthe entrained water, and especially the oil which accompaniesit, from the engine. 108 HEATING AND VENTILATION §17 The drainage from the heating apparatus is collected inthe pipe h, and is returned to the boiler by means of apump /, as shown. The… … Fig. 03. The i>uinp governor is merely a closed vessel containing afloat 21 which rises and falls with the water level. Thesteam which drives the pump is taken from the high-pressurepipe c through the stop-valve n, and passes through a throttlevalve / which is controlled by the float. When the…
