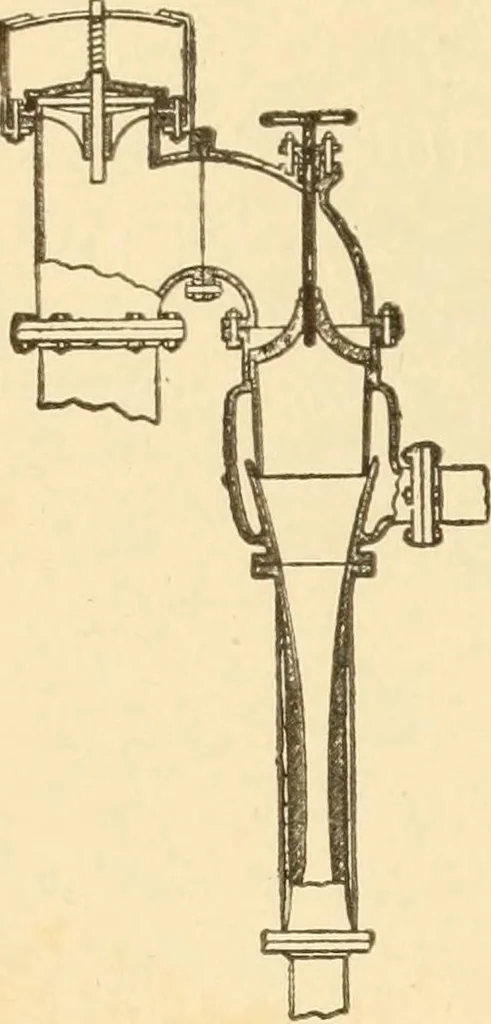

- themultiple nozzle water jet. Korting model. no STEAM APPLIANCES. … ,398. EXHAUST JET CONDENSER.—The exhaust steam passes through a cyHndri-caJ nozzle and meets a thin annular stream ofwater at the mouth of a funnel-shaped nozzle.The converging sheet of water condenses thesteam, and prevents back pressure by itsvelocity through the narrow end of the nozzle.
