Gas-engines and producer-gas plants; a practice treatise setting forth the principles of gas-engines and producer design, the selection and installation of an engine, conditions of perfect operation, producer-gas engines and their possibilities, the care of gas-engines and producer-gas plants, with a chapter on volatile hydrocarbon and oil engines (1905)
Mathot, Rodolphe Edgard, 1866- · New York N.W. Henley Pub. Co · leaf 212

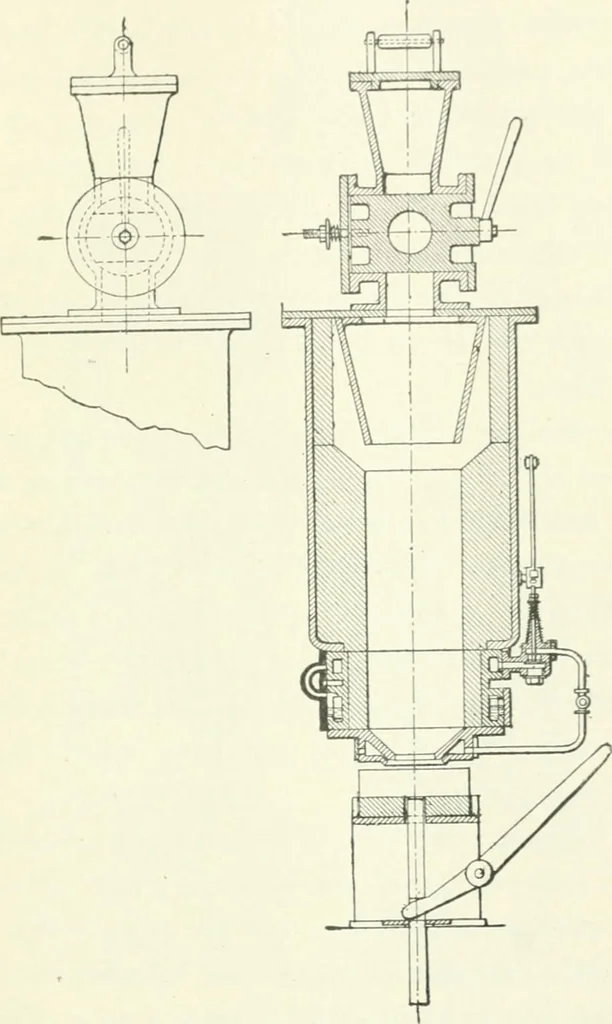

FiG. loo.—Goebcls producer. newai of the part most liable to be burnt, employ at thebottom of the tank a refractory moulded ring (Len-cauchez. Fig. 99). It is always advisable to place between the shell or GENERATOR DESIGN 213 mantle of the generator and the refractory lining alayer of a material… … Fig. ioi.—Pierson producer. for instance, asbestos or sand, in order to avoid as muchas possible loss of heat due to external radiation (Fig.100). 2T4 GAS-ENGINES AND PRODUCERS Grate and Support for the Lining.—These parts,owing to their contact with the ashes and the hot em-hers, are liable to…
Gas · Internal combustion engines
