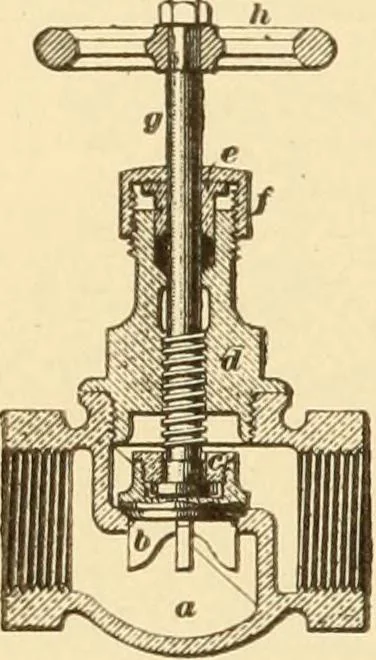

418. HORIZONTAL SWING CHECKVALVE.—The disc is loose in the swingframe and may be reground tight by a socketwrench passed through the plug opening. … 419. GLOBE VALVE. a, the body.d, the bonnet.g, the spindle. b, the winged disc. c, the spindle nut <f, gland./, gland nut.h, wheel.
