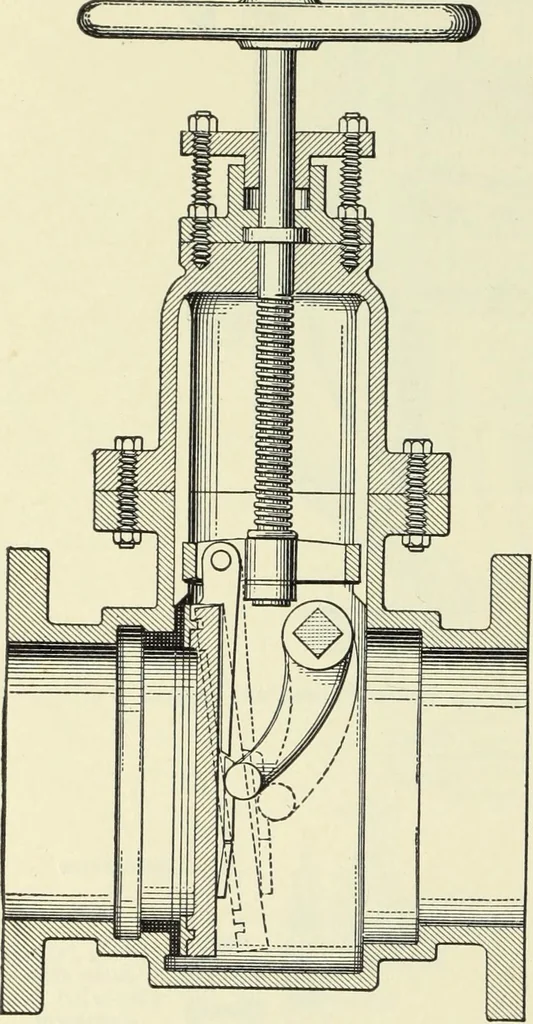

this class, illustrates the development of this sort of equipment providing for all con-tingencies and probable replacements, as a consideration of its features will indicate. The plugfits snugly in a separate and easily removable bronze casing, which can be readily replaced whenworn. Any… … Fig. 26. Interior op the Erwood Swing-Gate Valve. The Dotted Lines Showthe Swing-Gate Partly Open. PIPE, FITTINGS, VALVES, COVERINGS AND ACCESSORIES 501 is brought in contact with same is washed off by the water which passes around the plug whenseating. It will be seen that the plug C carries a…
