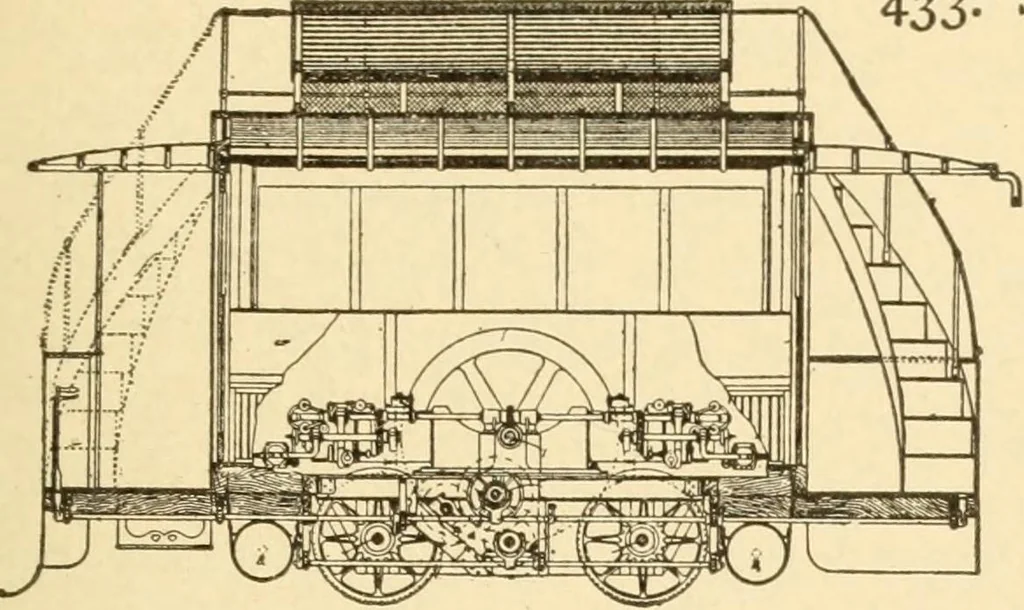

troke of the piston. E, clearance space ; B. guard on pis-ton ; A, crank chamber ; F, tube igniter ; D O, inlet valves. MOTIVE POWER. 433 STREET RAILWAY GASMOTOR PASSENGERCAR, German model. Themotor consists of two cylin-ders on opposite sides of thecrank shaft, placed underthe seats. The fly-wheel…
