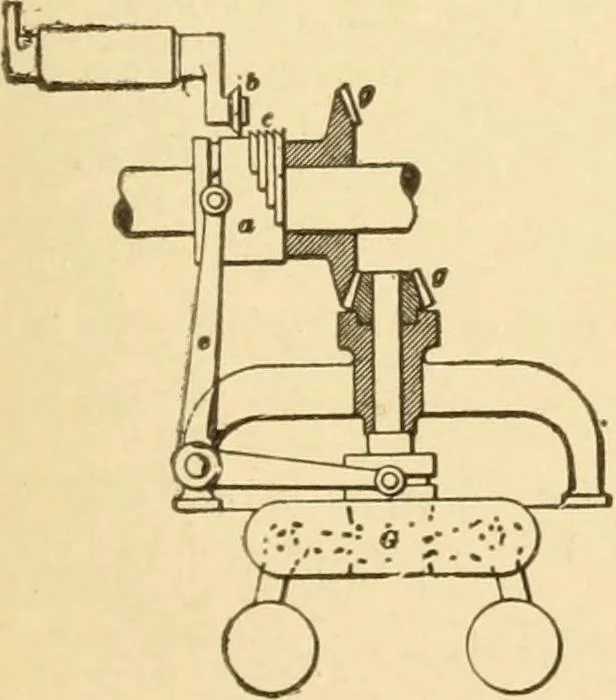

443. GOVERNOR AND VARIABLE CAM for a gas engine. The centrifugal movementof the governor balls slides the sleeve on thegovernor shaft, and also the variable camsleeve, a, on the driving shaft, by the bell-cranklever, e. The disc roller, b, on an arm of a rockshaft, rolls upon one or the other cams…
