Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 145

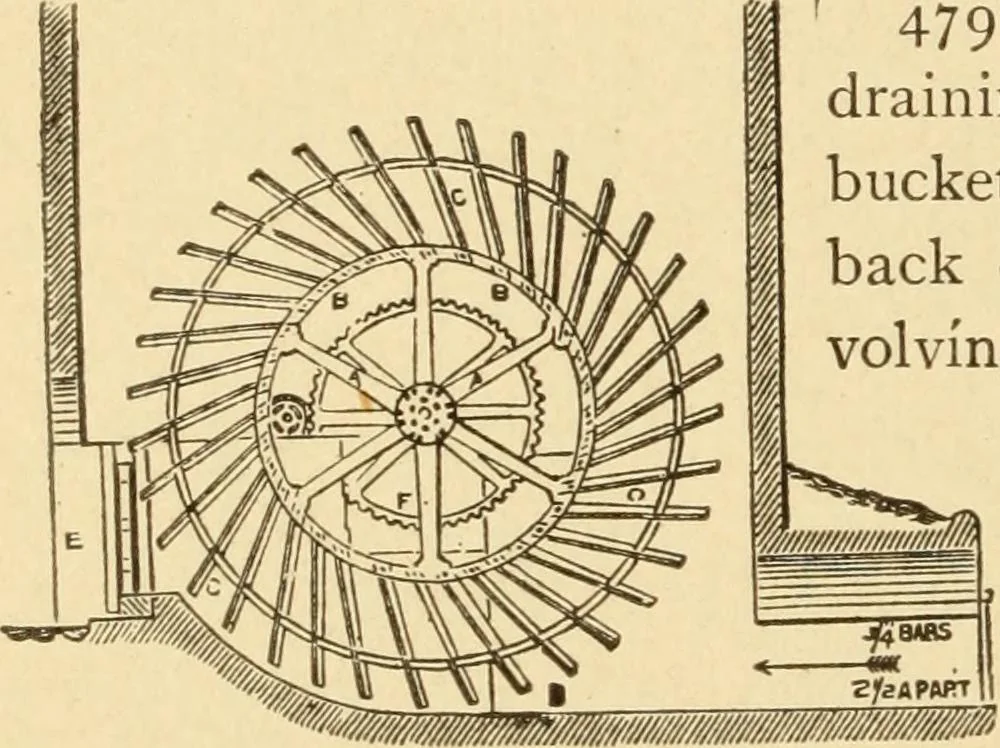

478. CURRENT WHEEL WATERLIFT.—The water buckets and arms aretroughs that carry the water to the centralhollow shaft, from the end of which it isdischarged into a trough. Used for irrigation and low-grade water supply. … 479. DRAINAGE WHEEL, used fordraining fens and lowlands. Broadbuckets on a power-driven wheel with aback or tangential slope, the wheel re-volving in a current shield. Such wheels,at proper speed, will lift a large^ volume of water to a height ofnearly half their diameter. ^^^:C^5^^\ 480. PERSIAN…
