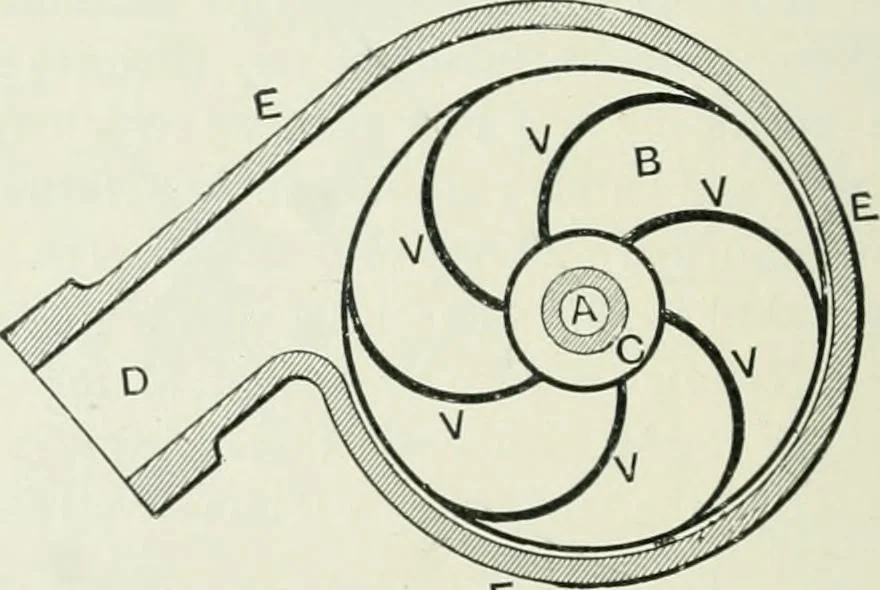

by a spindle a by means of a frictiondisc or gear wheel. The position of the pump is below theradiator, hence there is always a good head of water issuingto the centre inlet c, whence it is ejected by centrifugal force atthe pipe D, thence through the cylinder jacket and out at thetop of the… … EFig. 22.—Centrifugal Pump E E E, Pump casing ; C C C, Suction area at centre of fan ; B, Fan ;V V V V, Fan blades or vanes ; D, Delivery pipe ; A, Driving shaft consists of a pair of cog wheels placed in a closed chamberwith but little clearance allowed, the water being caught, as itwere, by the…
