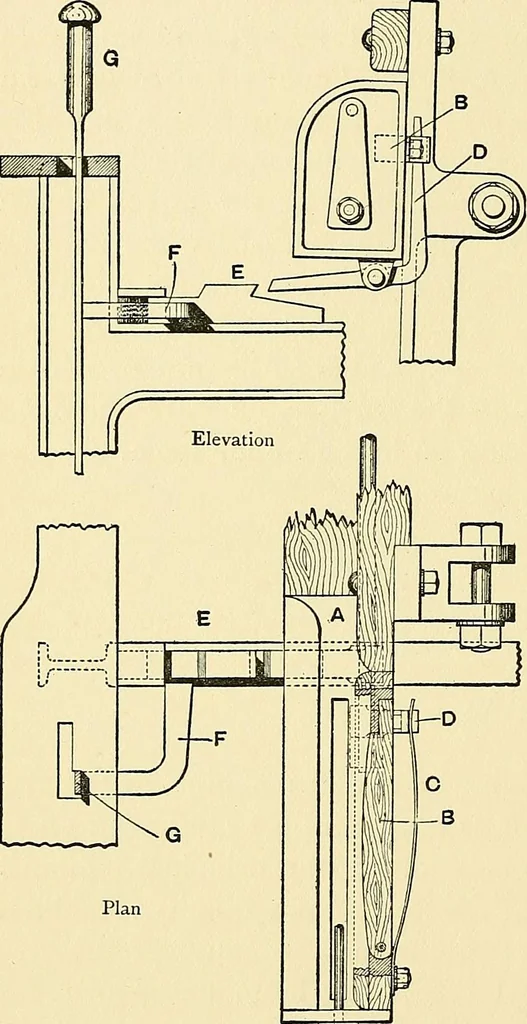

which a short vertical lever isslotted; the base of this lever iscurved and fixed to a rod extend-ing across the loom, named thestop rod. A blade is fixed uponthe rod at both ends. Corres-ponding to the blades, a pair offrogs or projections are screwedinto the loom frame, set andshaped so that the… … Fig. 338.—Shuttle-box Swell A, Shuttle race. B, Swell, c. Spring. D, L-shaped levermaking contact with the sliding block E attached to the armF, which throws the starting lever G out of the notch. over the frogs. But if the shuttleat either end fails to act upon the swell, then the blades are…
